Level Transmitter
Burkert - Type 8131 - Radar filling level meter for liquids and bulk solids
- Suitable for simple applications such as water treatment, storage tanks and small silos
- Continuous filling level measurement up to 20 m, 4…20 mA, 2-wire
- Available process connections: thread (G, NPT, R 1½")
- Excellent radar signal focusing and high measurement dynamics
- Adjustable via Bluetooth
Burkert - Type 8140 - Radar filling level meter for liquids and bulk solids suitable for use in applications with aggressive fluids or with hygienic requirements
- Continuous filling level measurement up to 120 m, 4...20 mA, 2-wire
- Available process connections: mounting bracket, thread (G, NPT ¾ and 1½), flange (DN50, 2" ASME), clamp (2")
- Excellent radar signal focusing and high measurement dynamics
- Adjustable via the display/configuration module and keys, alternatively via Bluetooth

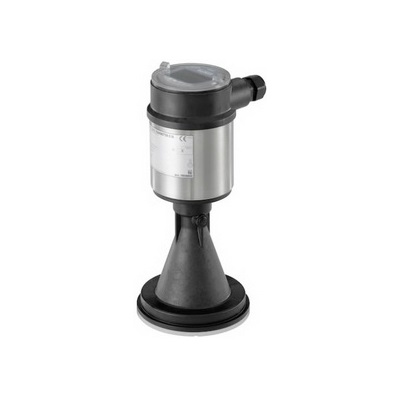

Burkert - Type 8136 - Radar level transmitter for aggressive media
- Compact for level measurement up to 20 m
- 4 ... 20 mA/Hart - 2 wires
- Adjustable with PC
- ATEX approvals

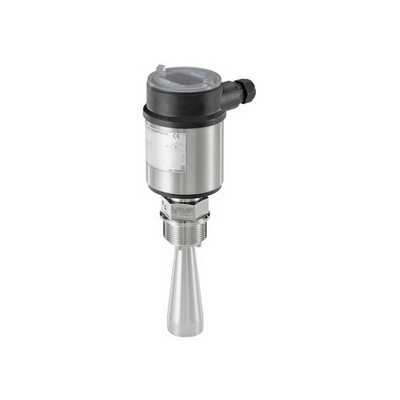

Burkert - Type 8137 - Radar level transmitter for higher pressure ranges
- Compact for level measurement up to 30 m
- 4 ... 20 mA/Hart - 2 wires
- Adjustable with PC
- ATEX approvals

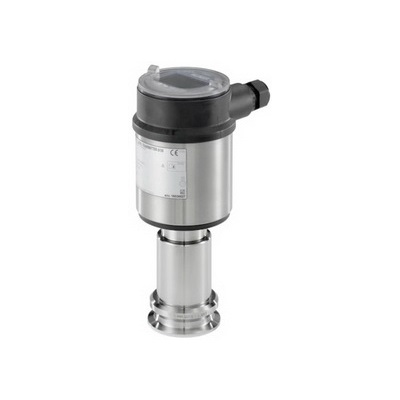

Burkert - Type 8138 - Radar level transmitter for hygienic applications
- Compact for level measurement up to 20 m
- 4 ... 20 mA/Hart - 2 wires
- Adjustable with PC
- ATEX approvals
- Clamp, Varivent® process connection

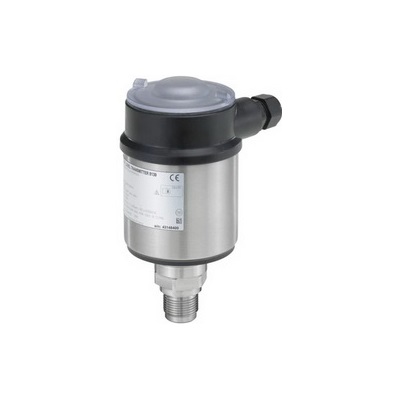

Burkert - Type 8139 - Radar level meter for liquids suitable for use in applications with aggressive fluids as well as with hygienic requirements
- Continuous level measurement up to 30 m, 4…20 mA, 2-wire
- Available process connections: Plastic horn antenna, thread (G, NPT ¾ and 1 ½ ), flange (DN50, DN100), clamp (2")
- Excellent radar signal focusing and high measurement dynamics
- Adjustable using the display/configuration module and keys, alternatively via PC-Tool with DTM

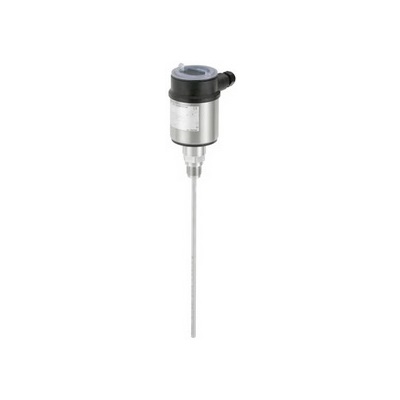

Burkert - Type 8188 - Level measurement device with guided radar
- Universal level measurement device for liquids
- Liquid interface measurement
- Insensitive to dust and steam
- 4…20 mA/HART - 2 wires, ATEX/IECEx certifications

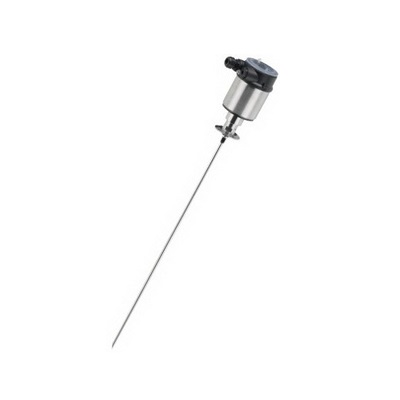

Burkert - Type 8189 - Guided microwave level transmitter - sanitary version
- Universal level measurement device for liquids
- Liquid interface measurement
- Insensitive to dust and steam
- 4... 20 mA/Hart - 2 wires, ATEX/IECEx approvals

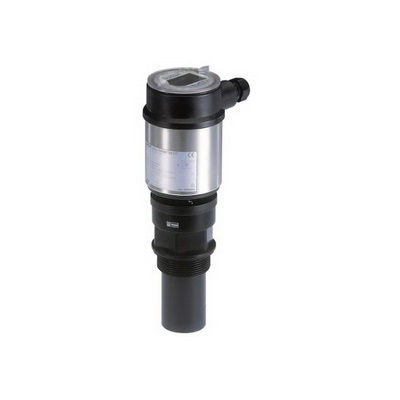

Burkert - Type 8177 - Ultrasonic level transmitter measuring device
- For level measurement up to 8 m
- 4...20 mA/HART - 2 wires
- Suitable for solids
- ATEX certification
