Air Preparation FRLs
.jpg)

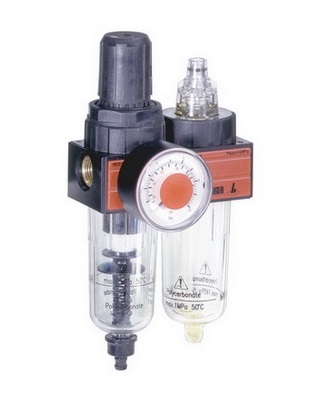

Series airfit light G1/8, G1/4
FRLs Air preparation unit (filters, regulators, lubricators)
Series airfit light G1/8, G1/4 small and light with an advanced internal system
Port size : G 1/8″ - G1/4″
Filter element : 5 μm or 30 μm
Drain option : Manual, semi-automatic (pressure relief)
Operating pressure : Inlet pressure : 0 – 10 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 440 – 1830 l/min
- lightweight
- compact design
- complete range
- easy to install
- optimum price/performance ratio
- outstanding operating safety
.jpg)

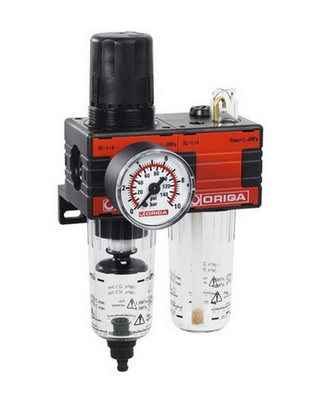

Series airfit swing G1/4, G3/8
FRLs Air preparation unit (filters, regulatoes, lubricators)
Series airfit swing G1/4, G3/8 technically and economically convincing
Port size : G1/4″- G3/8″
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic (pressure relief), Automaitc (float type)
Operating pressure : Inlet pressure : 0 – 16 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 790 – 3300 l/min
- optimum price/performance ratio
- outstanding operating safety
- modular interlock
- comprehensive accessories
- special versions
.jpg)

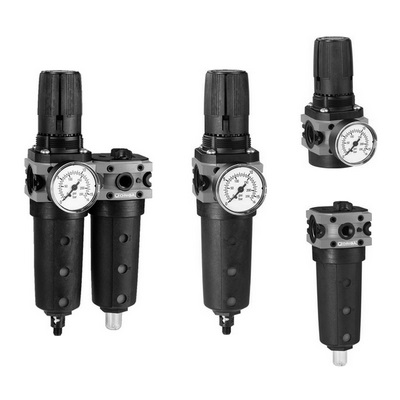

Series A15 airfit comfort G3/8, G1/2
FRLs Air preparation unit (filters, regulators, lubricators)
A15 airfit comfort G3/8, G1/2 New Nano-Mist & Self-Adjusting Concept,
extremely user-friendly with a comprehensive range of components
Port Size : 1/2”, 3/4”
Filter element : 5 µm, 40 µm
Drain Option : Manual, SemiAuto, Automatic Drain
Operating pressure : Inlet : 16 bar, Outlet : 0.3 – 8 bar, 0.3 – 16 bar (on request)
Max.Flow rate : 3300 – 7200 l/min
Operating Temperature : –40°C to +60°C
Body Material : High-Tech Polymer
Bowl Material : High-Tech Polymer
Seal Material : Nitrile
Self-Adjusting Oil/Air Ratio : 5 mg/m³, 50 mg/m³
.jpg)

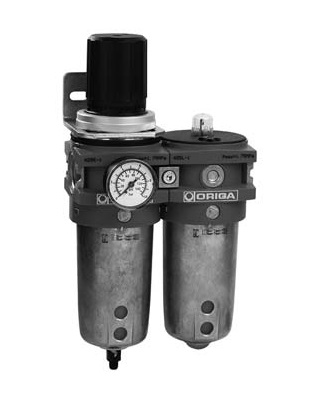

Series A25 airfit G3/4, G1
FRLs Air preparation unit (filters, regulators, lubricators)
A25 airfit G3/4”, G1” real one-inch system for harsher environments
Port size : G3/4″, G1”
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0.5 – 17.5 bar
Max.Flow rate : 7900 – 20000 l/min
- p1max = 17.5 bar
- minimum pressure drop
- robust metal housing
- high resistance to oils and solvents
- modular interlock
- special versions
.jpg)

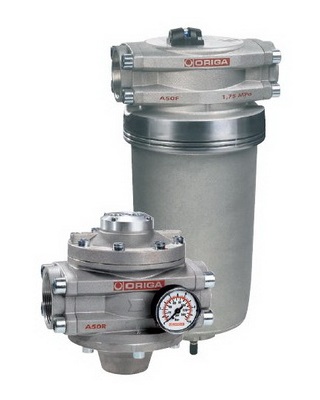

Series A50 airfit G11/2, G2
Air preparation unit (filter-water-separator, pressure regulating valve)
Series A50 airfit G11/2, G2” main line equipment for pneumatic hoists,
in the offshore sector, blow moulding machines, etc.
Port size : G1.1/2″, G2″, SAE flange
Filter element : 1 μm, 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0 – 8 bar, 0 – 16 bar
Max.Flow rate : >40000 l/min
- p1max = 17.5 bar
- minimum pressure drop
- automatic drain
- secondary pressure relief
- flow and primary pressure compensation
.jpg)

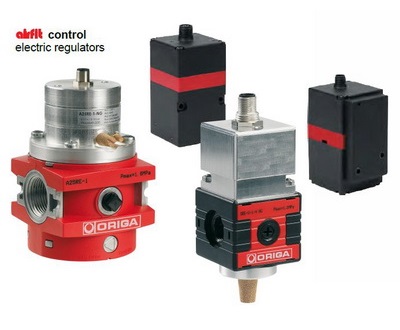

airfit control Electric Regulator G1/4 - G2
Airfit control – Electronic Control Proportional Pressure Regulating valves
- Accurate output pressure
- Very fast response times
- Robust but lightweight design
- Long lifetime
- High flow rates
Type: SRE (G1/4, G3/8)
CRE (G3/8, G1/2)
A25RE (G3/4, G1)
A50RE (G1 1/2, G2)
Max.Flow rate : 2200 to > 40000 l/min
Operating pressure : Inlet : 0 – 16 bar, Outlet : 0 – 10 bar
Supply voltage : 24 VDC = ±10%
Target value intput : 0 – 10 V, 0 – 20 mA, 4 – 20 mA
