Metal Fittings

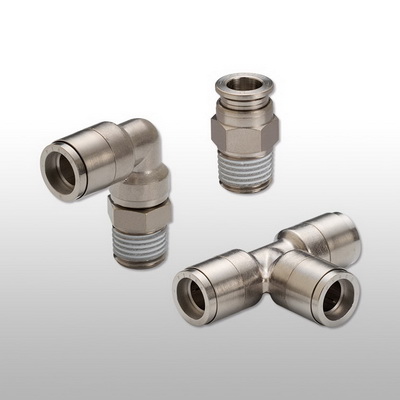

PISCO: K Series Tube Fitting Brass Type
Not only the body but also the release ring is made of brass, so that these models feature excellent flame/spatter resistance and heat resistance.
Type description : Brass (Standard)
Tube size O.DxI.D. (mm) : 4 – 12
Thread size : M5×0.8 metric thread, R1/8″ – R1/2″ Taper pipe thread
Fluid medium : Air, Water
Max Pressure/vacuum (bar) : 10
Operating temp. (℃) : HNBR : 0 – 100℃, FKM : 0 – 120℃, NBR : 0 – 60℃ (No freezing)

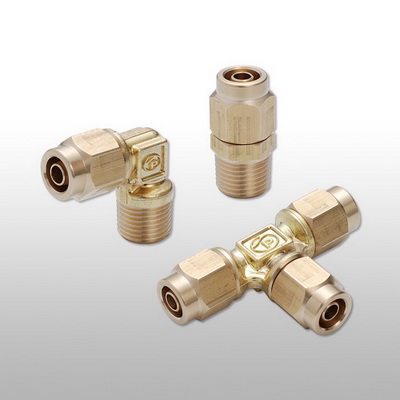

PISCO: NK Series Brass Compression Fitting Type
By using special brass in the main metal body, this product line has achieved the high resistant performance against water.
Best suitable for Auto Industry and Thermal Control for mold tooling.
Type description : Brass (Screw-on)
Tube size O.DxI.D. (mm) : 4×2.5, 6×4, 8×5, 8×6, 10×6.5, 10×7.5, 12×8, 12×9, 12×10, 16×11, 16×13
Thread size : R1/8″ – R1/2″, Rc1/8 – Rc1/2″
Fluid medium : Air, Water, Others
Max Pressure/vacuum (bar) : Depending on Max. operating pressure of tube used
Operating temp. : Depending on operating temp. range of tube used (No freezing)
