Air Preparation

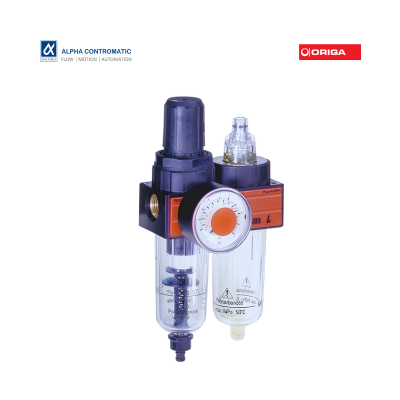

Series airfit light G1/8, G1/4


FRLs Air preparation unit (filters, regulators, lubricators)
Series airfit light G1/8, G1/4 small and light with an advanced internal system

Port size : G 1/8″ - G1/4″
Filter element : 5 μm or 30 μm
Drain option : Manual, semi-automatic (pressure relief)
Operating pressure : Inlet pressure : 0 – 10 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 440 – 1830 l/min

  • lightweight
  • compact design
  • complete range
  • easy to install
  • optimum price/performance ratio
  • outstanding operating safety

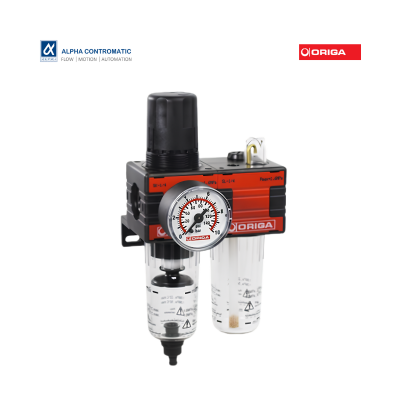

Series airfit swing G1/4, G3/8


FRLs Air preparation unit (filters, regulatoes, lubricators)
Series airfit swing G1/4, G3/8 technically and economically convincing

Port size : G1/4″- G3/8″
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic (pressure relief), Automaitc (float type)
Operating pressure : Inlet pressure : 0 – 16 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 790 – 3300 l/min

  • optimum price/performance ratio
  • outstanding operating safety
  • modular interlock
  • comprehensive accessories
  • special versions

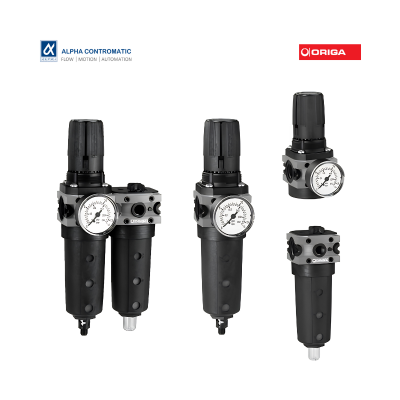

Series A15 airfit comfort G3/8, G1/2


FRLs Air preparation unit (filters, regulators, lubricators)
A15 airfit comfort G3/8, G1/2 New Nano-Mist & Self-Adjusting Concept,
extremely user-friendly with a comprehensive range of components

Port Size : 1/2”, 3/4”
Filter element : 5 µm, 40 µm
Drain Option : Manual, SemiAuto, Automatic Drain
Operating pressure : Inlet Pressure : 16 bar, Outlet pressure : 0.3 – 8 bar, 0.3 – 16 bar (on request)
Max.Flow rate : 3300 – 7200  l/min
Operating Temperature : –40°C to +60°C
Body Material : High-Tech Polymer
Bowl Material : High-Tech Polymer
Seal Material : Nitrile
Self-Adjusting Oil/Air Ratio : 5 mg/m³, 50 mg/m³

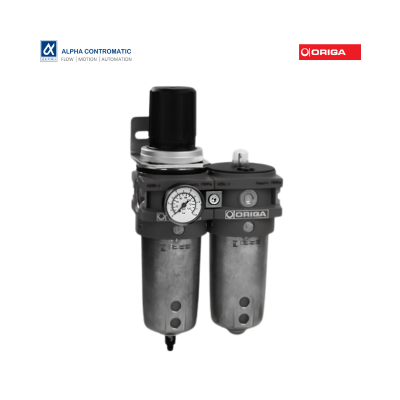

Series A25 airfit G3/4, G1


FRLs Air preparation unit (filters, regulators, lubricators)
A25 airfit G3/4”,  G1” real one-inch system for harsher environments

Port size : G3/4″, G1”
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0.5 – 17.5 bar
Max.Flow rate : 7900 – 20000  l/min

  • p1max = 17.5 bar
  • minimum pressure drop
  • robust metal housing
  • high resistance to oils and solvents
  • modular interlock
  • special versions

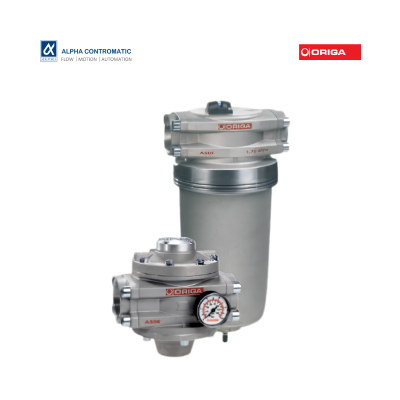

Series A50 airfit G11/2, G2


Air preparation unit (filter-water-separator, pressure regulating valve)
Series A50 airfit G11/2, G2” main line equipment for pneumatic hoists,
in the offshore sector, blow moulding machines, etc.

Port size : G1.1/2″, G2″, SAE flange
Filter element : 1 μm, 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0 – 8 bar, 0 – 16 bar
Max.Flow rate : >40000  l/min

  • p1max = 17.5 bar
  • minimum pressure drop
  • automatic drain
  • secondary pressure relief
  • flow and primary pressure compensation

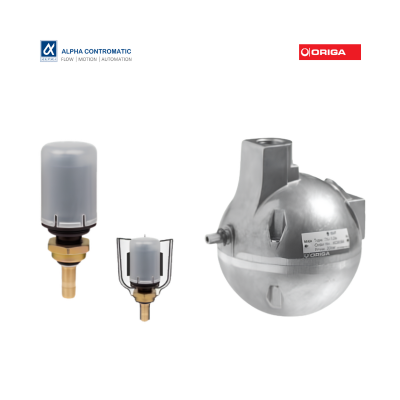

Automatic condensate drain valves 1/4, 1/2


Drain valve  DV-1/4i, 1/2i
Float-controlled drain valve for automatic drainage of condensate from industrial filters used in compressed air technology. For installation in all plastic and metal reservoirs. Fitted in the ORIGA A25 and A50 series..

Drain valve DV-1/2e
Float-controlled drain valve for automatic drainage of condensate from compressed air lines and compressors. Tackles highly polluted condensate without problems. Installation instruction: Generally at the lowest point, where condensate and oil collect.

Specifications
  • Port Size : G1/2”
  • Operating Pressure : 0 – 16 bar
  • Medium Temperature : 0 - 100 C
  • Float Material : Stainless Steel
  • Body Material : Aluminium Alloy
  • Seal Material : Oil resistant o-ring
  • Drain Capacity : up to 300 l/h
Features
  • Mechanical Float Type Automatic Drian
  • Discharges only the Condensate - Zero Air Loss
  • Corrosion Resistance against Synthetic Lubricants
  • Suitable for All Types of Compressors
  • Reliable, Non-Noisy and Long Endurance
  • Equipped with a Manual Purging Valve

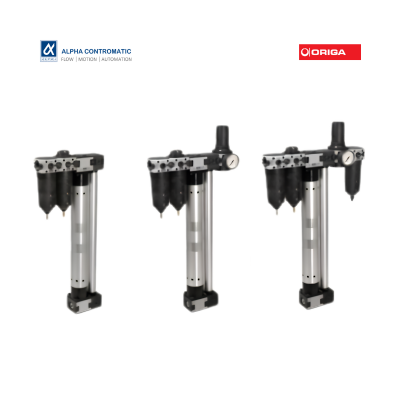

Series airfit Dry Membrane Dryer G1/2, G3/4


The innovative membrane technology and especially the patented purge air control makes the membrane dryer airfit dry, one of the leading devices of its kind. As an ideal end-of-line solution, it is particularly suited for highly sensitive areas like medical techno-logy, electronics, as well as mobile pneumatic applications and industrial automation. Exceptional performance is guaranteed, even in the most arduous environ-mental conditions

  • No electrical connection
  • Suitable for hazardous areas
  • No CFC’s/FC’s
  • Low pressure drop
  • No additional sensors or control elements
  • No wear and tear due to the absence of mechanically moving parts
  • Practically silent
  • No alteration of the air composition
  • Flexible depending on drying purpose
  • Fast response
  • Up to 16 bar

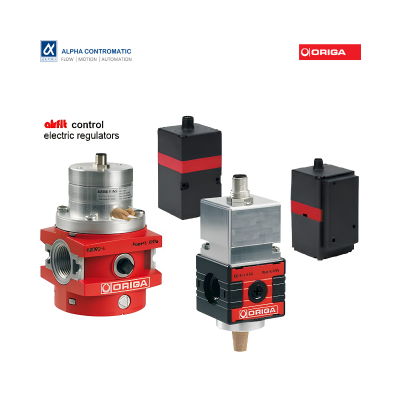

airfit control Electric Regulator G1/4 - G2


Airfit control – Electronic Control Proportional Pressure Regulating valves
  • Accurate output pressure
  • Very fast response times
  • Robust but lightweight design
  • long lifetime
  • high flow rates

Type: SRE (G1/4, G3/8)
          CRE (G3/8, G1/2)
          A25RE (G3/4, G1)
          A50RE (G1 1/2, G2)

Max.Flow rate : 2200 to > 40000 l/min
Operating pressure : Inlet : 0 – 16 bar, Outlet : 0 – 10 bar
Supply voltage : 24 VDC = ±10%
Target value intput : 0 – 10 V, 0 – 20 mA, 4 – 20 mA
