Hygienic valves

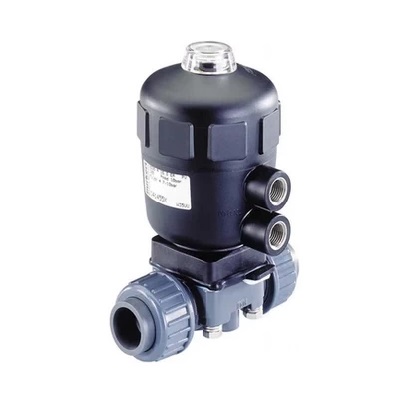

Type 2030 - Pneumatically operated 2/2 way diaphragm valve CLASSIC with plastic body


Pilot controlled diaphragm valve with pistonactuator and diaphragm seal. As standard, actuator from PA. The flow optimised and zero dead volume valve body makes high flow rates possible.

  • Flow optimized and deadleg free bodies
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Robust actuators with modular acessory program
  • Self-draining plastic bodies with true union, solvent socket, weld ends or flanges
  • Applicable for aggressive an corrosive media

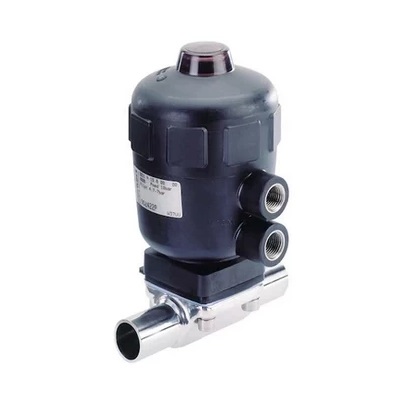

Type 2031 - Pneumatically operated 2/2 way diaphragm valve CLASSIC with stainless steel body


Pilot controlled diaphragm valve with pneumatically operated piston actuator and valve body from cold-formed stainless steel pipe. Actuator from PA or PPS.

  • Flow optimized and deadleg free bodies
  • Hermetical separation of fluids from the operating mechanism by diaphragm

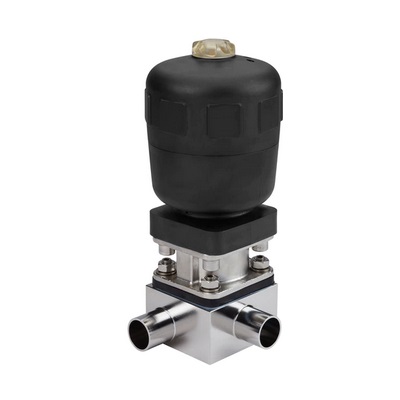

Type 2032 - Pneumatically operated zero dead volume T-Valve CLASSIC


The Burkert Zero Deadleg T Valve is designed for control of ultra pure, sterile, aggressive or abrasive fluids. Enables especially optimal sampling, draining or diverting of critical process fluids. The valve body is machined from a single piece of block material (monoblock– no weld seam). The high quality diaphragms separate hermetically critical fluids from the actuator. The pneumatic actuator can be controlled by pneumatic pilot valves (single pilot valves, valve islandsand control heads). Control function A, normally closed by spring return.

  • Zero dead volume body - no welds
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Universal and robust actuators with modular accessory range
  • Stainless steel body
  • Quality certifications FDA/3A

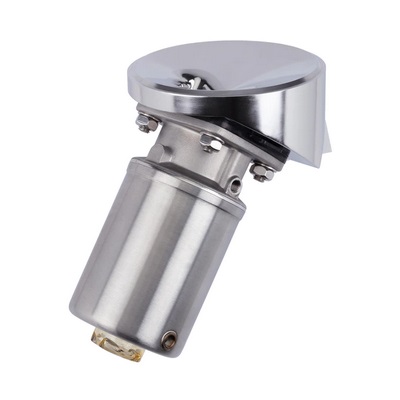

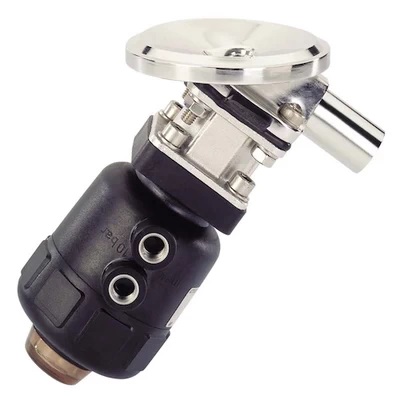

Type 2033 - Pneumatically operated tank bottom valve CLASSIC


The Bürkert Tank Bottom Valve is designed for control of ultra pure, sterile, aggressiveor abrasive fluids. Enables especially optimal filling and emptying vessels with less dead leg.The valve body consists of a block with no weldseam, machined out of high quality stainless steel. The Tank Bottom Valve has two welding bevels to ease the welding and valve positioning operations. The high quality diaphragms separate hermetically critical fluids from the actuator. The pneumatic actuator can be controlled by pneumatic pilot valves (single pilot valves, valve islands and control heads). Control function A, normally closed by spring return.

  • Zero dead volume body - no welds
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Universal and robust actuators with modular accessory range
  • Stainless steel body with welded connection
  • Quality certifications FDA/3A

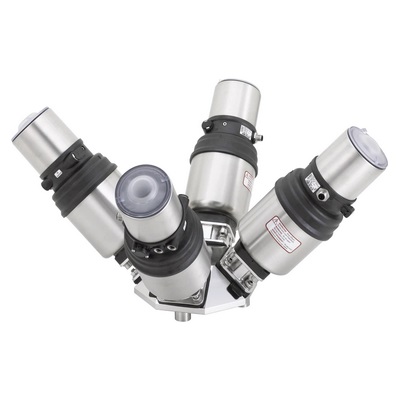

Type 2034 - Multifunction Block and Weld Solution


  • Minimum deadleg
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Easy integration of automation units with ELEMENT
  • Variable block and weld bodies
  • Quality certifications FDA/3A

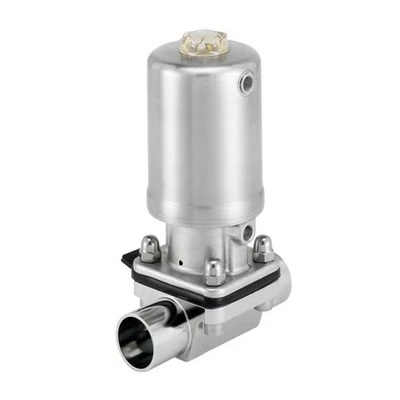

Type 2063 - Pneumatically operated 2/2-way diaphragm valve with stainless steel actuator


The pneumatically operated diaphragm valve with stainless steel actuators fulfils the demands of tough process environments. Cast or forged body in high quality stainless steel have excellent cleanability and surface qualities that are required in pharmaceutical, biopharma, cosmetic or food and beverage industry. The stainless steel actuator has been designed for tough applications. Laser welding ensures it is both cleanable and robust. With a ducted exhaust air port, the actuator can be operated isolated from the environment to guarantee an optimum life time and hygiene. The trusted Bürkert diaphragm materials are optimised for a long life time and comply to USP Class IV, FDA and EC Directive. As part of the Bürkert diaphragm valve program a large accessory program is available, also explosion proof variants.

  • Flow optimised stainless steel cast or forged body free of empty space
  • Media separation using different diaphragm materials
  • Trusted components for long life time
  • Stainless steel actuator for demanding environments
  • Large accessory program with stroke limitation and position feedbacks available

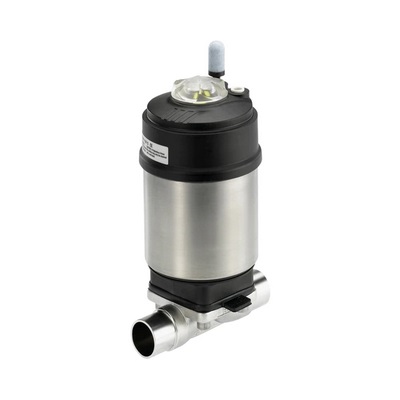

Type 2103 - Pneumatically operated 2/2-way diaphragm valve ELEMENT for decentralized automation


The externally piloted diaphragm valve type 2103 consists of a pneumatically operated piston actuator, a diaphragm and a 2-way valve housing made of cast stainless steel. The high quality actuator with a stainless steel cover is designed for usage in hygienic or aggressive environments.The flow optimised and zero dead volume valve body makes high flow rates possible and a variety of applications to be realised. The design enables the easy integration of automation modules whether they are electrical/optical position feedback, pneumatic control units, an integrated fieldbus interface or even an explosion proof device versions. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67, NEMA Type 4X protection class and superior chemical resistance.

  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Quality certifications FDA

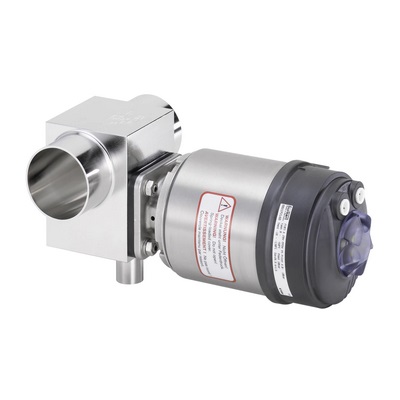

Type 2104 - Pneumatically operated zero dead volume T-valve ELEMENT for decentralized automation


The Bürkert Zero dead volume T-Valve Type 2104 is designed for control of ultra pure, sterile, aggressive or abrasive fluids. It enables especially optimal sampling, draining or diverting of critical process fluids. The valve body is machined from a single piece of block material (monoblock – no weld seam).The high quality diaphragms separate hermetically critical fluids from the actuator. The pneumatic actuator is optimized for decentralized automation through ELEMENT pneumatic automation units. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67, NEMA Type 4x protection class and superior chemical resistance.

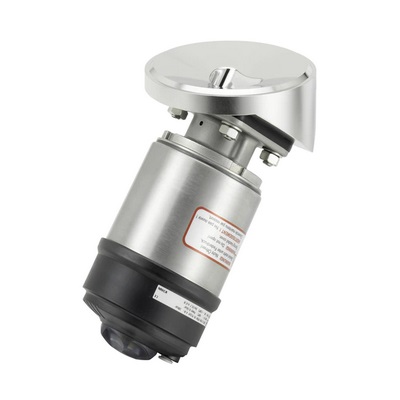

Type 2105 - Pneumatically operated tank bottom valve ELEMENT for decentralized automation


The Bürkert Tank Bottom Valve Type 2105 is designed for control of ultra pure, sterile, aggressive or abrasive fluids. Enables especially optimal filling and emptying vessels with less dead leg. The valve body consists of a block with with no weld seam, machined out of high quality stainless steel. The Tank Bottom Valve has two welding bevels to ease the welding and valve positioning operations.The high quality diaphragms separate hermetically critical fluids from the actuator. The pneumatic actuator is optimized for decentralized automation through ELEMENT pneumatic automation units. The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67, NEMA Type 4X protection class and superior chemical resistance.

  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Quality certifications FDA/3A

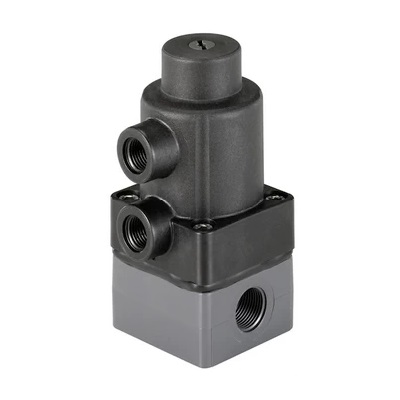

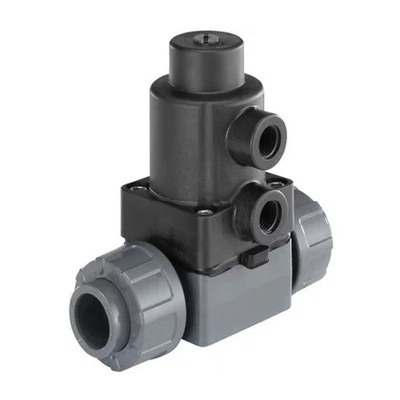

Type 3230 - Pneumatically operated 2/2 way Diaphragm Valve with plastic body


2/2-way plastic diaphragm valve, pilot operated with pneumatic actuator and spring return. Used for polluted medium in process and water technology.

  • Control function convertible
  • Can be used for aggressive medium
  • Compact design

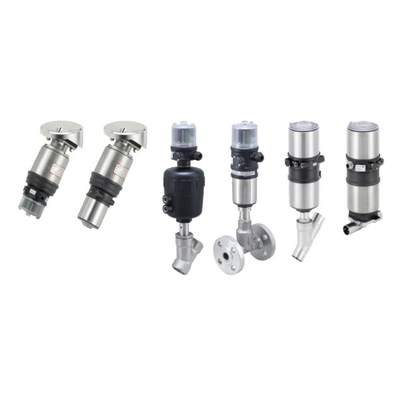

Type 8801 - ELEMENT On/Off Valve Systems with decentralized automation


The design of the System Type 8801 On/Off ELEMENT enables the easy integration of automation modules whether they are electrical/optical position feedback, pneumatic control units, an optional integrated fieldbus interface or even an explosion proof control head. The fully integrated system with valve and automation system has a compact and smooth design, integrated pneumatic lines, IP65/67/NEMA4X protection class and superior chemical resistance.

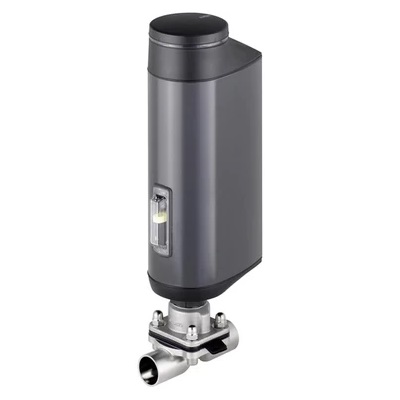

Type 3323 - Electromotive 2-way diaphragm valve


The innovative Bürkert diaphragm valve Type 3323 is the solution when it comes to on/off control in areas with media contact such as the food and beverage, cosmetic, pharmaceutical and biopharma industry. The electromotive actuator with ball screw shuts the valve quasi delay free with – for electromotive actuators – a unique high control speed within 1.5 to 4.5 seconds. If necessary, the safety position can be realised with optional energy pack in case of power failure. Pressure fluctuations or shocks in the medium are not transferred to the valve position. Furthermore, many helpful functions for process control, valve diagnostics and preventive maintenance are available. Besides the mechanical position indicator, a 360° LED illuminated ring displays the valve position and information about warnings and errors. Various communication standards up to cutting-edge fieldbus systems are available. Trusted valve bodies and diaphragms ensure media separation with minimum empty space and are easy to clean. Demanding environments are no problem for the Type 3323 with its high IP protection and high resistance to vibration and shocks. Hygienic design allows a fast and residue-free exterior cleaning. The actuator force can be exactly adjusted for the operating conditions to maximise the diaphragm life time.

  • Safety position with energy pack
  • Fast closing time
  • Adjustable actuator force for increased diaphragm life time
  • Various diaphragms, stainless steel and plastic bodies available
  • Diagnostic functions and fieldbus integration

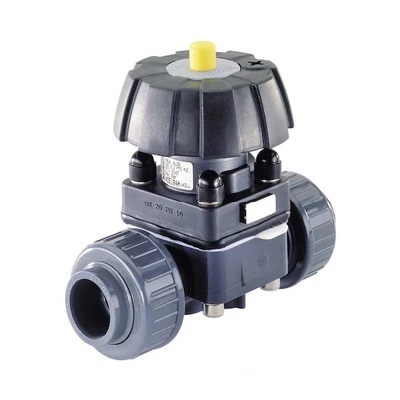

Type 3232 - Manually operated 2-way Diaphragm Valve with plastic body


Manually-operated diaphragm valves in compact model consisting of plastic bodies, diaphragm seal, PPS bonnet and PPS handwheel. The diaphragm is both a switching element and a seal element towards the outside, and is easily replaced. The flow can be continually adjusted with the handwheel. The valves have no dead volume and can be mounted to be self-draining.

  • Flow optimized and deadleg free bodies
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Manual actuator in plastic
  • Plastic bodies with true union, solvent socket, weld ends or flanges
  • Suitable for aggressive an corrosive media

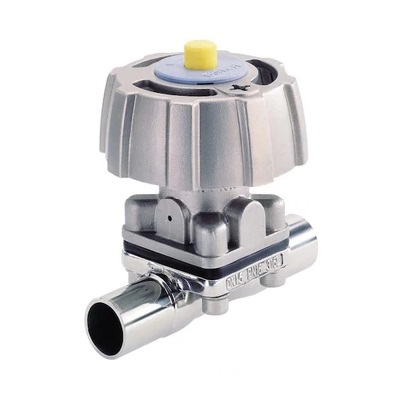

Type 3233 - Manually operated 2-way Diaphragm Valve with stainless steel body


The 3233 manually-operated diaphragm valve in compact form consists of a flow-optimised cast stainless steel body with various surface finishes, a diaphragm and a manual actuator.The material combinations are selectable. The diaphragm is both a switch element and a sealing element to the outside. It can be easily replaced. The flow can be continually adjusted with the manually actuator. The valves have no dead volume and can be mounted to be self-draining. This enables high flow capacities and a variety of applications to be realized. The valves are autoclavable.

  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Quality certifications FDA

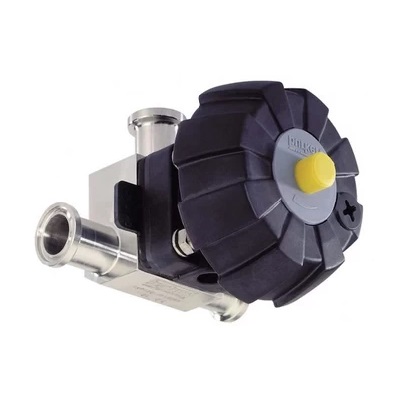

Type 3234 - Manually operated T Valve


The Burkert Zero Deadleg T Valve is designed for control of ultra pure, sterile, aggressive or abrasive fluids. Enables especially optimal sampling, draining or diverting of critical process fluids. The valve body is machined from a single piece of block material (monoblock– no weld seam). The high quality diaphragms separate hermetically critical fluids from the actuator. The manual actuator in PPS or stainless steel can be sterilized.

  • Zero dead volume body - no welds
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Actuator in stainless steel or plastic
  • Stainless steel body with clamp or weld ends
  • Quality certifications FDA/3A

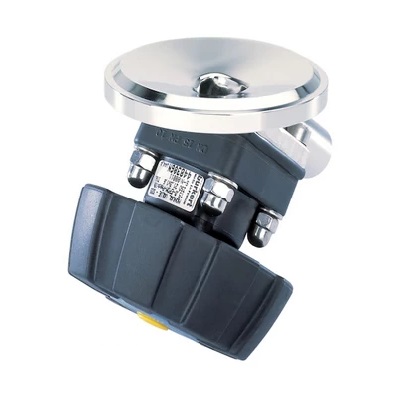

Type 3235 - Manually operated Tank Bottom Valve


The Bürkert Tank Bottom Valve system is designed for control of ultra pure, sterile, aggressive or abrasive fluids. Enables especially optimal filling and emptying vessels with less dead leg. The valve body consists of a block with no weld seam, machined out of high quality stainless steel. The tank bottom valve has two welding bevels to ease the welding and valve positioning operations. The high quality diaphragms separate hermetically critical fluids from the actuator. The manual actuator in PPS or stainless steel can be sterilized.

  • Zero dead volume body - no welds
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Manual Actuator in stainless steel or plastic

Type 8690 - Pneumatic control for decentralised automation of ELEMENT process valves


The pneumatic control unit Type 8690 is designed for decentralised automation of ELEMENT Type 21xx pneumatic process valves. Mechanical or inductive limit switches register the valve position. The integrated pilot valve controls single or double-acting actuators. The design of the control unit and the actuator enables an internal control air routing without external tubings. Besides the electrical position feedback, the status of the device is shown directly on the pneumatic control unit itself. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries. Focused on wash down applications, the IP protection of the housing is supported by a positive pressure inside the control head. Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

  • Compact design
  • Integrated pilot valve with manual override
  • Integrated control air routing in the actuator
  • Visual position indicator
  • With ATEX II cat. 3G/D and cat. 2D/G approval

Type 8691 - Control head for decentralised automation of ELEMENT process valves


The control head Type 8691 is designed for decentralized automation of ELEMENT Type 21xx pneumatic process valves. The registration of the valve position is done through a contact-free analogue sensor element, which automatically recognises and saves the valve end position through the Teach function during start-up. The integrated pilot valve controls single or double-acting actuators. As an option a communication interface, AS-Interface, DeviceNet, IO-Link or büS (based on CANopen) can be chosen. The design of the control head and the actuator enables an internal control air routing without external tubings. Besides the electrical position feedback, the status of the device is shown directly on the control head itself through coloured powerful LEDs, even in difficult ambient conditions. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing in food, beverage and pharmaceutical industries. Focused on wash down applications, the IP protection of the housing is supported by a positive pressure inside the control head. Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

  • Contact-free inductive valve position registration (Teach-In function)
  • Coloured illuminated status display
  • Integrated control air routing in the actuator
  • Fieldbus interface AS interface, DeviceNet, IO-Link or büS (Bürkert System Bus)
  • With ATEX II cat. 3G/D / IECEx approval

Type 8695 - Control head for decentralised automation of ELEMENT process valves


The control head Type 8695 is designed for decentralized automation of ELEMENT Type 21xx pneumatic process valves with smaller orifice. The registration of the valve position is done through a contact-free analogue sensor element, which automatically recognises and saves the valve end position through the Teach-In function during start-up. The integrated pilot valve controls single or double-acting actuators. The design of the control head and the actuator is specially designed for the requirements of a hygienic process environments and enables an internal control air routing without external tubings. Besides the electrical position feedback, the status of the device is shown directly on the control head itself through coloured LEDs. As an option a communication interface, AS-Interface, can be chosen. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing in food, beverage and pharmaceutical industries. Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

  • Contact-free inductive valve position registration (Teach-In function)
  • Coloured illuminated status display
  • Integrated control air routing in the actuator
  • Fieldbus interface AS interface / DeviceNet (option)
  • With ATEX II cat. 3G/D approval

Type 8697 - Pneumatic control for decentralised automation of ELEMENT process valves


The pneumatic control unit Type 8697 is designed for decentralised automation of process valves ELEMENT Type 21xx. Mechanical or inductive limit switches register the valve position. The integrated pilot valve controls single-acting actuators. The design of the control unit and the actuator enables internal control air routing without external tubings. Besides the electrical position feedback the status of the device is shown directly on the pneumatic control unit itself via LEDs. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing, in food, beverage and pharmaceutical industries. Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

  • Compact design
  • Integrated pilot valve with manual override
  • Integrated control air routing in the actuator
  • Automatic adjustment of final position feedback
  • With ATEX II cat. 3G/D and cat. 2D/G approval

Type 2034 - Multifunction Block and Weld Solution


  • Minimum deadleg
  • Hermetical separation of fluids from the operating mechanism by diaphragm
  • Easy integration of automation units with ELEMENT
  • Variable block and weld bodies
  • Quality certifications FDA/3A

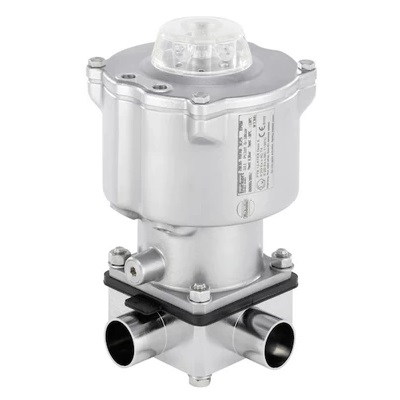

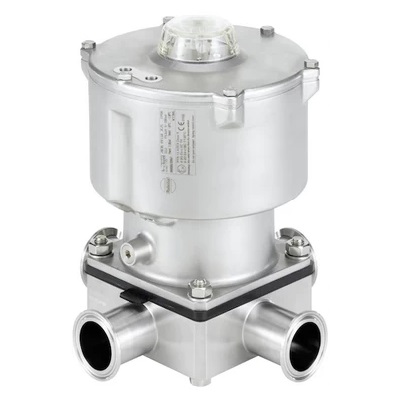

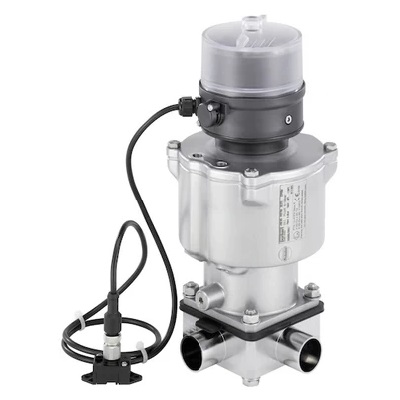

Type 2036 - Robolux Multiway Multiport Diaphragm Valve, Pneumatically operated


This Multiway-Multiport Diaphragm Valve system is designed for control of ultra pure, sterile, aseptic and steam/CIP fluid paths. It enables optimal sampling, draining or diverting of critical process fluids. The valve range is based on the patented Robolux technology, where two seats are placed under one diaphragm. This design eliminates dead legs and will minimize the flow system volume. The valve body is machined from a single piece of bar stock stainless steel. The high quality diaphragms are available in several different USP class VI approved materials. The valve is operated with compressed air. With the Feedback and Control Heads the Robolux fits perfectly into Bürkert’s decentralized automation concept. All valves will be delivered with 3.1 certificate, installation drawing and manual instruction.

  • Allows optimized processes designs
  • Reduced installation costs
  • Reduced number of valves and welds
  • Stainless steel bodies in different configurations
  • Approvals FDA, CE, USP VI, ATEX/IECEx, 3.1

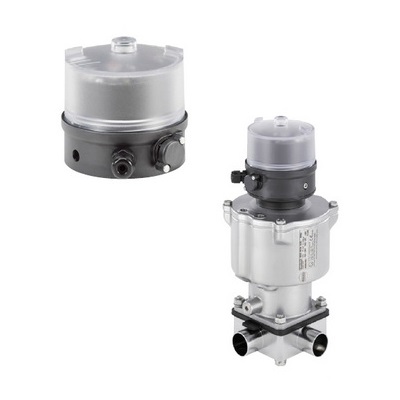

Type 8685 - Control- and feedback head for integrated mounting on Robolux valves Type 2036 Print


Feedback Type 8685 and control head Type 8686 are optimized for integrated mounting on pneumatically operated actuators Type 2036 Robolux. The adjustment to the individual actuator size is done through DIP-switches. As compact units the devices contain the complete automation functionality of both individually operated actuator pistons. Depending on the configuration the electrical and visual position feedback is done by non-contact switches and high-power LEDs. Integrated pilot valves control the actuator pistons and AS-interface communication is available. Using appropriate barriers both types feature intrinsically safety acc. to ATEX. In this way a complete concept for decentralized automation is feasible. The compact body is especially destinguished by its hygienic design, materials beeing chemically resistant against cleaning media and a proven IP protection. In addition the Control Head Type 8686 features an integrated compressed air filter to protect the pilot valve function against particles through the compressed air supply.

  • Compact stainless steel design
  • Contactless valve position registration
  • Coloured illuminated status display
  • Fieldbus AS-Interface (optional)
  • Version for ATEX / IECEx

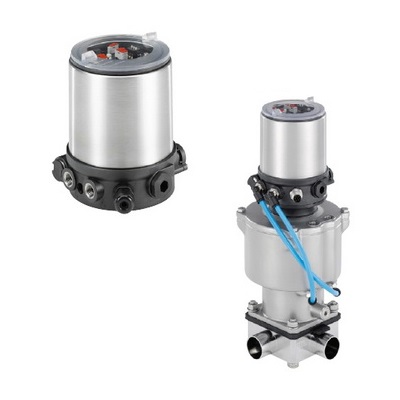

Type 8686 - Control- and feedback head for integrated mounting on Robolux valves Type 2036


Feedback Type 8685 and control head Type 8686 are optimized for integrated mounting on pneumatically operated actuators Type 2036 Robolux. The adjustment to the individual actuator size is done through DIP-switches. As compact units the devices contain the complete automation functionality of both individually operated actuator pistons. Depending on the configuration the electrical and visual position feedback is done by non-contact switches and high-power LEDs. Integrated pilot valves control the actuator pistons and AS-interface communication is available. Using appropriate barriers both types feature intrinsically safety acc. to ATEX. In this way a complete concept for decentralized automation is feasible. The compact body is especially destinguished by its hygienic design, materials beeing chemically resistant against cleaning media and a proven IP protection. In addition the Control Head Type 8686 features an integrated compressed air filter to protect the pilot valve function against particles through the compressed air supply.

  • Compact stainless steel design
  • Contactless valve position registration
  • Coloured illuminated status display
  • Fieldbus AS-Interface (optional)
  • Version for ATEX / IECEx

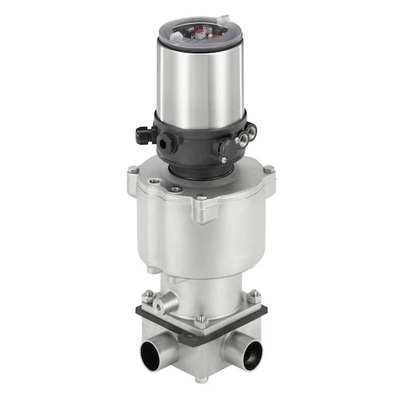

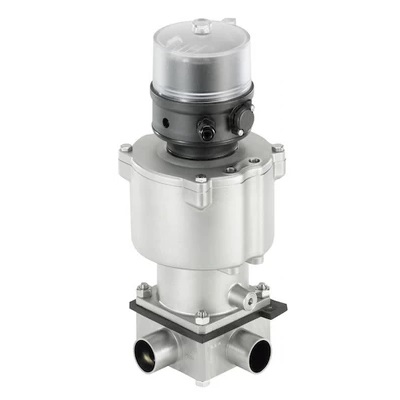

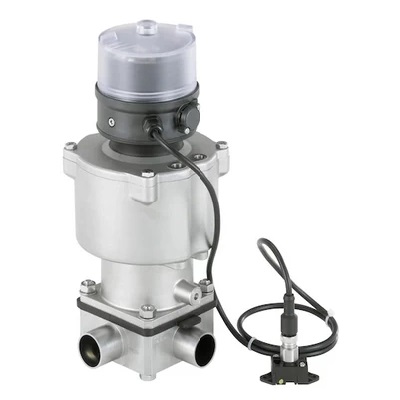

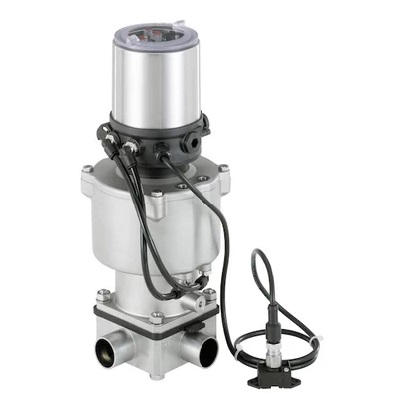

Type 8806 - Robolux Multiway Multiport Diaphragm Valve with Control and Feedback Head


Type 8806 consists of the pneumatically operated multiway multiport diaphragm valve Robolux Type 2036 and position feedback Type 8685 or control head Type 8686.

  • Allows optimized processes designs
  • Reduced installation costs
  • Reduced number of valves and welds
  • Contactless valve position registration
  • Coloured illuminated status display and fieldbus AS-Interface (optional)



Hygienic Solutions:

www.burkert.com/en/content/download/275446/8019710/file/Hygienic-Valve-  Solutions_video_medium.mp4?id=D120001002101276

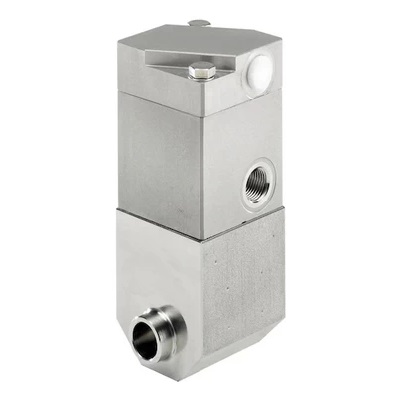

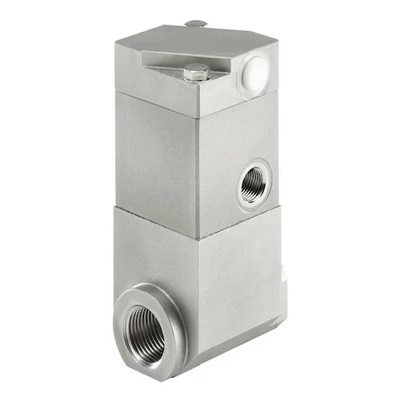

Type 2080 - Pneumatically operated 2/2 way valve with PTFE bellow


The valve consists of a pneumatically piston actuator with return spring, a stainless steel body and PTFE bellows. The PTFE bellows are used for the separation of the medium. With the appropriate installation (body to bottom) the valve is self-draining. The materials used and the internal contours are simple to clean (CIP and SIP). The valve is suitable for food technology. The modular structure permits configuration with different armatures and customized port connectors. The pneumatic actuator is servo assisted by a pilot valve, a valve block or similar.

  • High Medium resistance
  • Easy to clean for hygienic applications
  • Long service life
  • Compact

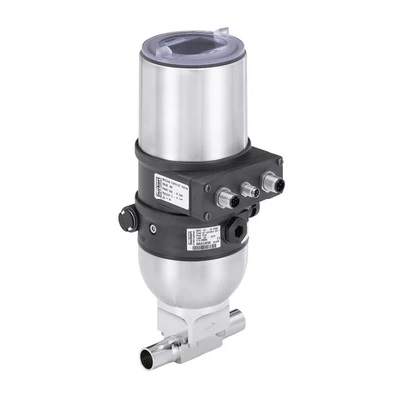

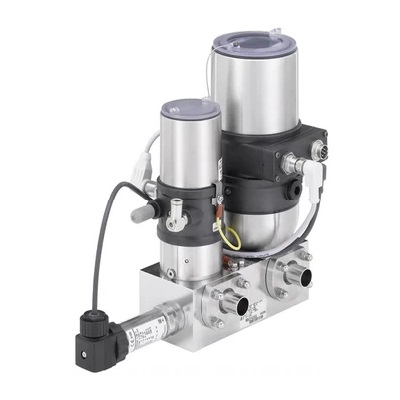

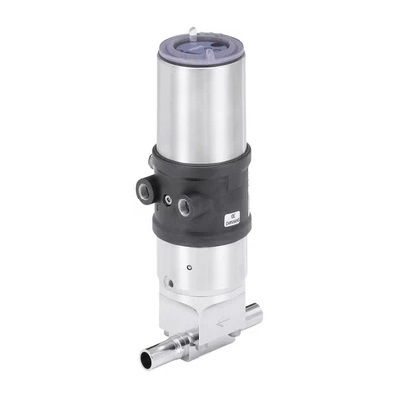

Type 2380 - 2/2-way Bellow Control Valve


The bellow control valve is a pneumatically operated process valve with a single-acting diaphragm actuator. A PTFE bellow ensures the separation between medium and actuator. The materials used and the design of the media space allow the use under hygienic or aggressive conditions. It has a good cleanability. The combination with a controller (Type 869x) and the control cone integrated into the bellow enable the valve to handle demanding control tasks. The space-saving actuator with low internal volume not only results in a very compact size but also in remarkably low response times. The valve is characterized by a good control performance due to the low-friction design and has a linear characteristic. A certain variety of body and block system solutions are deliverable.

  • For neutral and aggressive media
  • Media separation by PTFE bellow
  • Hygienic design

Other
