Solenoid Control Valves

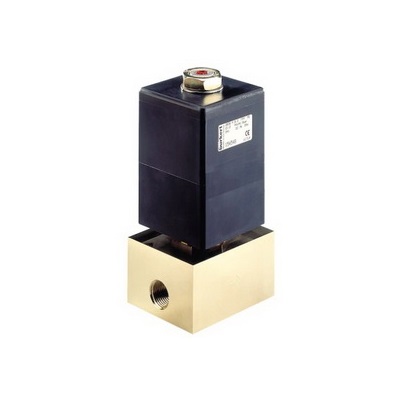

Type 2836 - Direct-acting 2-way Solenoid Control Valve


The direct-acting proportional valve Type 2836 works as an electromagnetically actuated control valve in applications with relatively high flow rates. The valve is normally closed.

  • For high flow rates
  • Direct-acting, normally closed
  • Operating pressure 0 ... 25 bar
  • Orifice sizes 3.0 ... 12 mm
  • Port connection 1/2” and ¾

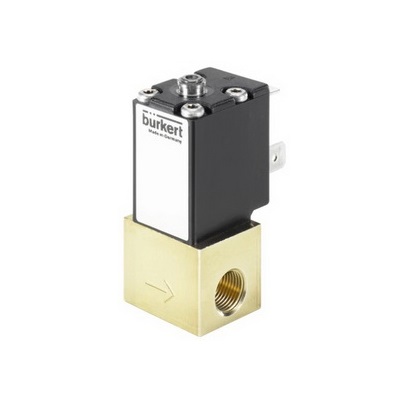

Type 2861 - Direct-acting 2-way basic proportional valve


Type 2861 is an extremely compact solenoid control valve and is available with an orifice up to 2mm. It is based on the standard version of Type 2871. It is used as an actuator in closed control loops (pressure, flow, temperature, etc.). Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times.

  • High dynamics
  • Orifice sizes DN 0.8 ... 2.0 mm
  • Good range

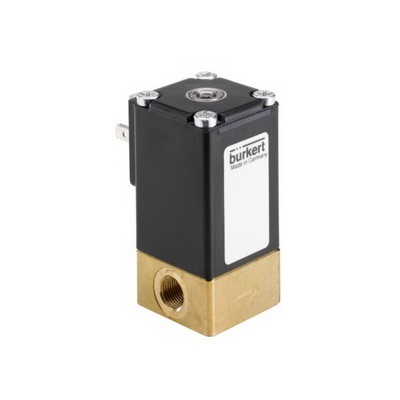

Type 2863 - Direct acting 2-way basic proportional valve


Type 2863 is an extremely compact solenoid control valve and is available with an orifice up to 4mm. It is based on the standard version of Type 2873. It is used as an actuator in closed control loops (pressure, flow, temperature, etc.). Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times.

  • High dynamics
  • Orifice sizes DN 0.8 ... 4.0 mm
  • Good range
  • Optional: Explosion-protected coil

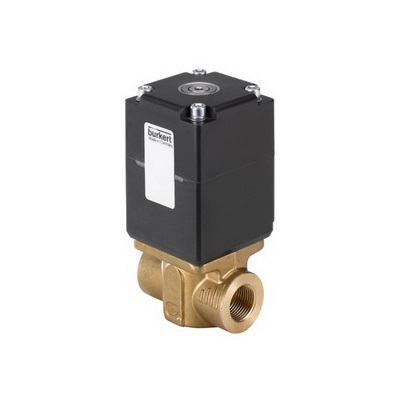

Type 2865 - Direct-acting 2-way basic proportional valve


Type 2865 is an extremely compact solenoid control valve and is available with an orifice up to 4mm. It is based on the standard version of Type 2875. It is used as an actuator in closed control loops (pressure, flow, temperature, etc.). Compared with the standard version, the valve is essentially of simpler construction and assembly and testing procedures are optimized, easing high volume series production with shorter delivery times.

  • High dynamics
  • Orifice sizes DN 2 ... 8 mm
  • Good range
  • Optional: Explosion-protected coil

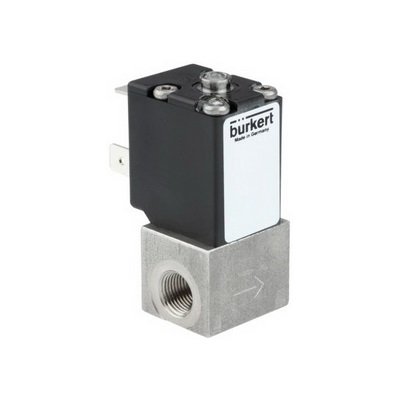

Type 2871 - Direct-acting 2-way standard solenoid control valve


The direct-acting solenoid control valve Type 2871 is used as the regulating unit in control loops. Due to an elastomeric seat seal the valve closes tight (integrated shut-off function) ,up to the DN specific nominal pressure. The plunger of the valve is assembled frictionless, which leads to an extraordinary adjustment characteristic. This valve is particularly suitable for demanding control tasks (high control range, dry gases, etc.).

  • Excellent range
  • Very good response
  • Compact valve design
  • Orifice sizes 0.05 ... 2.0 mm
  • Port connection 1/8” or sub-base

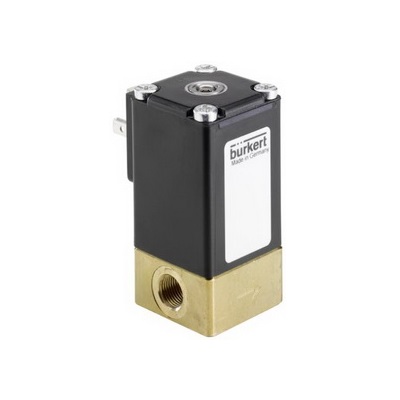

Type 2873 - Direct-acting 2-way standard solenoid control valve


The direct-acting solenoid control valve Type 2873 is used as the regulating unit in control loops. Due to an elastomeric seat seal the valve closes tight (integrated shut-off function), up to the DN specific nominal pressure. The plunger of the valve is assembled frictionless, which leads to an extraordinary adjustment characteristic. This valve is particularly suitable for demanding control tasks (high control range, dry gases, etc.).

  • Excellent range
  • Very good response
  • Compact valve design
  • Orifice sizes 0.8 ... 6 mm
  • Optional: Explosion-protected coil

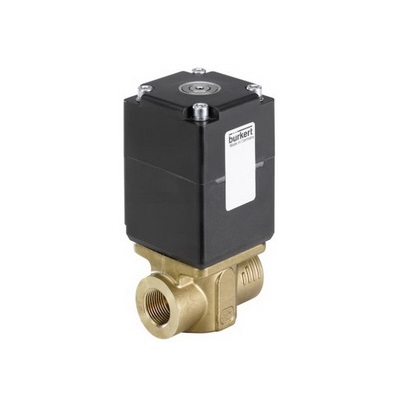

Type 2875 - Direct-acting 2 way standard solenoid control valve


The direct-acting solenoid control valve Type 2875 is used as the regulating unit in control loops. Due to an elastomeric seat seal the valve closes tight (integrated shut-off function), up to the DN specific nominal pressure. The plunger of the valve is assembled frictionless, which leads to an extraordinary adjustment characteristic. This valve is particularly suitable for demanding control tasks (high control range, dry gases, etc.).

  • Excellent range
  • Very good response
  • Compact valve design
  • Orifice sizes 2...9.5 mm
  • Optional: Explosion-protected coil

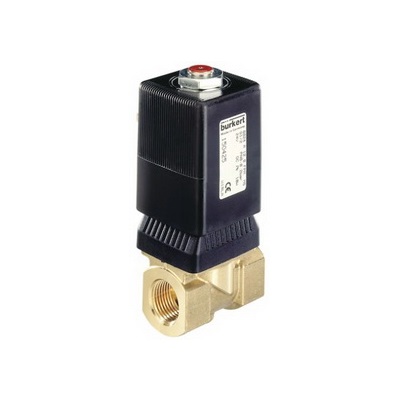

Type 6024 - Direct-acting 2-way low differential pressure solenoid control valve


The direct-acting proportional valve Type 6024 works as an electromagnetically actuated control valve with relatively high flow rates at low operating pressures. The valve is normally closed.

  • For high flow rates with low inlet pressure
  • Direct-acting, normally closed
  • Operating pressure 0 ... 0.7 bar
  • Orifice sizes 8 ... 12 mm
  • Port connection 1/2” and 3/4”

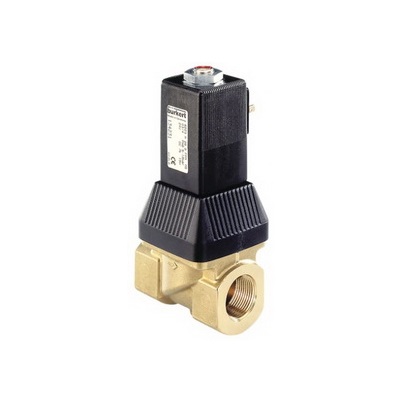

Type 6223 - Servo-assisted 2-way high-flow solenoid control valve


The valve Type 6223 can be used for the control of larger flow quantities. Low hysteresis, high reproducibility and good response sensitivity guarantee good positioning behaviour. The valve closes tight. The push-over coil is easy to replace.

  • Control valve for continuous control of liquids
  • Low hysteresis and high repeatability
  • Control with PWM signal
  • Servo-assisted, tight closing valve
