Air Preparation FRLs

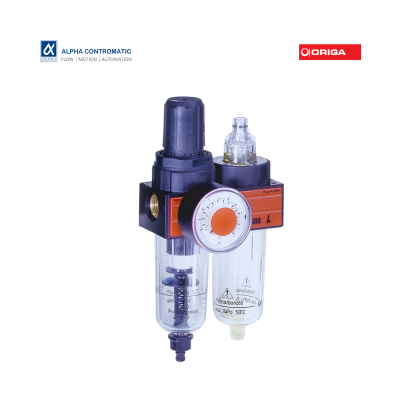

Series airfit light G1/8, G1/4


FRLs Air preparation unit (filters, regulators, lubricators)
Series airfit light G1/8, G1/4 small and light with an advanced internal system

Port size : G 1/8″ - G1/4″
Filter element : 5 μm or 30 μm
Drain option : Manual, semi-automatic (pressure relief)
Operating pressure : Inlet pressure : 0 – 10 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 440 – 1830 l/min

  • lightweight
  • compact design
  • complete range
  • easy to install
  • optimum price/performance ratio
  • outstanding operating safety

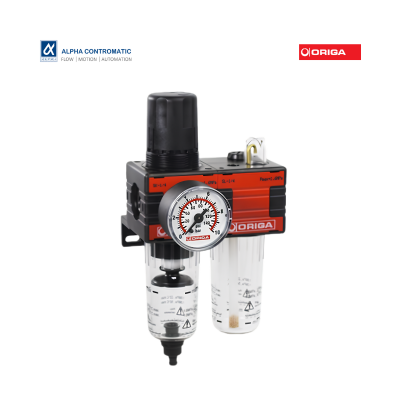

Series airfit swing G1/4, G3/8


FRLs Air preparation unit (filters, regulatoes, lubricators)
Series airfit swing G1/4, G3/8 technically and economically convincing

Port size : G1/4″- G3/8″
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic (pressure relief), Automaitc (float type)
Operating pressure : Inlet pressure : 0 – 16 bar, Outlet pressure : 0.5 – 8 bar
Max.Flow rate : 790 – 3300 l/min

  • optimum price/performance ratio
  • outstanding operating safety
  • modular interlock
  • comprehensive accessories
  • special versions

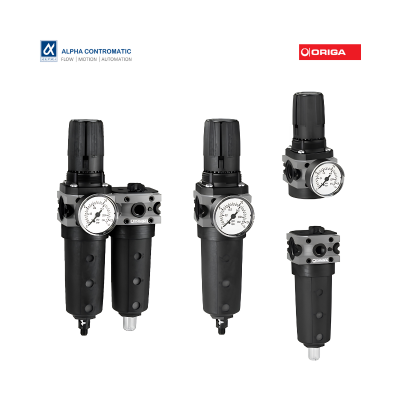

Series A15 airfit comfort G3/8, G1/2


FRLs Air preparation unit (filters, regulators, lubricators)
A15 airfit comfort G3/8, G1/2 New Nano-Mist & Self-Adjusting Concept,
extremely user-friendly with a comprehensive range of components

Port Size : 1/2”, 3/4”
Filter element : 5 µm, 40 µm
Drain Option : Manual, SemiAuto, Automatic Drain
Operating pressure : Inlet : 16 bar, Outlet : 0.3 – 8 bar, 0.3 – 16 bar (on request)
Max.Flow rate : 3300 – 7200  l/min
Operating Temperature : –40°C to +60°C
Body Material : High-Tech Polymer
Bowl Material : High-Tech Polymer
Seal Material : Nitrile
Self-Adjusting Oil/Air Ratio : 5 mg/m³, 50 mg/m³

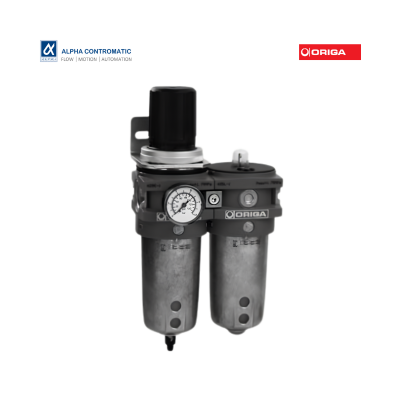

Series A25 airfit G3/4, G1


FRLs Air preparation unit (filters, regulators, lubricators)
A25 airfit G3/4”,  G1” real one-inch system for harsher environments

Port size : G3/4″, G1”
Filter element : 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0.5 – 17.5 bar
Max.Flow rate : 7900 – 20000  l/min

  • p1max = 17.5 bar
  • minimum pressure drop
  • robust metal housing
  • high resistance to oils and solvents
  • modular interlock
  • special versions

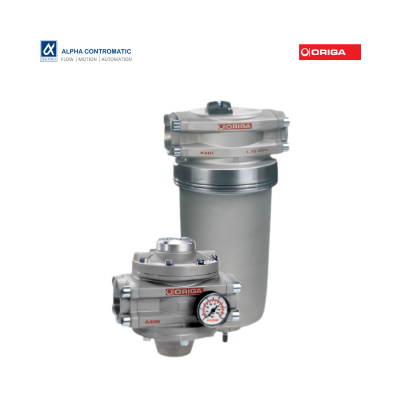

Series A50 airfit G11/2, G2


Air preparation unit (filter-water-separator, pressure regulating valve)
Series A50 airfit G11/2, G2” main line equipment for pneumatic hoists,
in the offshore sector, blow moulding machines, etc.

Port size : G1.1/2″, G2″, SAE flange
Filter element : 1 μm, 5 μm or 30 μm
Drain option : Manual, Semi-automatic, Automaitc drain
Operating pressure : Inlet pressure : 0 – 17.5 bar, Outlet pressure : 0 – 8 bar, 0 – 16 bar
Max.Flow rate : >40000  l/min

  • p1max = 17.5 bar
  • minimum pressure drop
  • automatic drain
  • secondary pressure relief
  • flow and primary pressure compensation

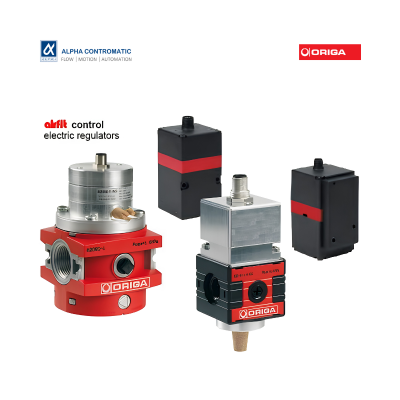

airfit control Electric Regulator G1/4 - G2


Airfit control – Electronic Control Proportional Pressure Regulating valves
  • Accurate output pressure
  • Very fast response times
  • Robust but lightweight design
  • Long lifetime
  • High flow rates
Type: SRE (G1/4, G3/8)
          CRE (G3/8, G1/2)
          A25RE (G3/4, G1)
          A50RE (G1 1/2, G2)

Max.Flow rate : 2200 to > 40000 l/min
Operating pressure : Inlet : 0 – 16 bar, Outlet : 0 – 10 bar
Supply voltage : 24 VDC = ±10%
Target value intput : 0 – 10 V, 0 – 20 mA, 4 – 20 mA
