P1Z Magnetic Rodless


P1Z Magnetic Rodless Cylinders

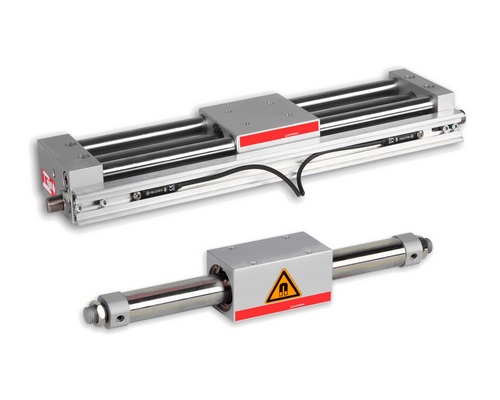

P1Z Rodless Pneumatic Cylinder Magnetic Coupled
Piston diameter Ø 16 - 40 mm

P1Z Basic Version
The P1Z is a rodless pneumatic cylinder. The piston and the carriage are equipped with ring magnets. The motion is transmitted via the magnetic force locking between the piston and the carriage.

P1Z Series Guided Version
The P1Z is a rodless pneumatic cylinder with guide. The piston and the guide carriage are equipped with ring magnets. The motion is transmitted via the magnetic force between the piston and the guide carriage. The guided version consists of a carriage fitted with 4 plain bearings, guided on 2 guide rods. The design provides high rigidity, accurate guidance and a non-rotating movement.


Other


P1Z Magnetic Rodless Cylinders

P1Z Magnetic Rodless Cylinders
