LIFTKIT

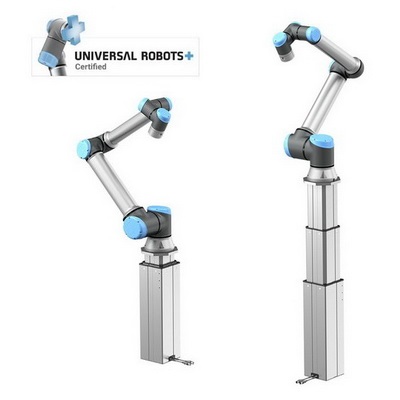

LIFTKIT-UR
The LIFTKIT-UR is a ready-to-install system and includes a lifting column with a UR mounting interface, a controller and a software plug-in for robots from Universal Robots (UR Cap) so that movements can be programmed directly via the UR controller. The UR mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.
- Load up to 1,5 kN
- Speed up to 80 mm/s
- Stroke up to 1 400 mm
- Plug and play with Universal Robots
Benefits:
- Extended operating range of UR cobots to increase productivity and save costs
- No hardware/software upgrades required
- Direct positioning access within the UR control environment
- Vibration-free and virtually maintenance-free movement
Features:
- Certified UR+ positioning axis
- Ready-to-use complete system
- Software plugin (UR Caps) for UR control system included
- Robust column design for industrial use

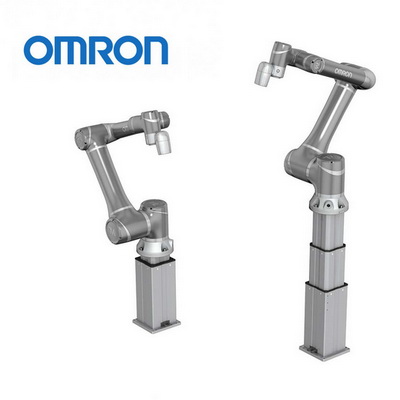

LIFTKIT-OM
The LIFTKIT-OM is a ready-to-install system and includes a lifting column with an Omron cobot mounting interface, a controller and an Omron software plug-in for robots, so that movements can be programmed directly via the cobot controller. The system includes redundant safety-certified relays for a safe stop procedure during operation. The Omron mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.
- Load up to 1,5 kN
- Speed up to 80 mm/s
- Stroke 500 to 1400 mm
- Plug and play with Omron TM
Benefits:
- Extended operating range of Omron cobots to increase productivity and save costs
- No hardware/software upgrades required
- Direct positioning access within the Omron TM control environment
- Vibration-free and virtually maintenance-free movement
Features:
- Certified Omron plug-and play positioning axis
- Ready-to-use complete system
- Software plugin Omron TM control system included
- Robust column design for industrial use

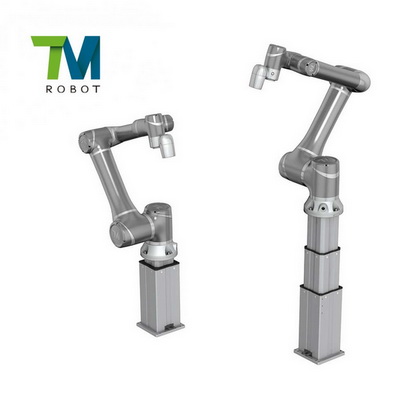

LIFTKIT-TM
The LIFTKIT-TM is a ready-to-install system and includes a lifting column with a TM cobot mounting interface, a controller and a TM software plug-in for robots, so that movements can be programmed directly via the cobot controller. The system includes redundant safety-certified relays for a safe stop procedure during operation. The TM mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.
- Load up to 1,5 kN
- Speed up to 80 mm/s
- Stroke 500 to 1400 mm
- Plug and play with Techman TM
Benefits:
- Extended operating range of TM cobots to increase productivity and save costs
- No hardware/software upgrades required
- Direct positioning access within the TM control environment
- Vibration-free and virtually maintenance-free movement
Features:
- Certified TM plug-and play positioning axis
- Ready-to-use complete system
- Software plugin TM control system included
- Robust column design for industrial use

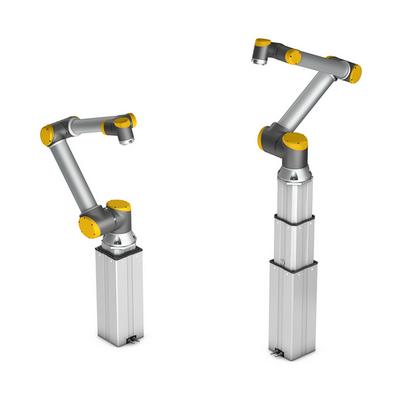

LIFTKIT-0S
The LIFTKIT-0S is a ready-to-install system and includes a lifting column with a control unit that can be connected to the cobot via Ethernet port and then programmed and controlled through a standard TCP/IP protocol. With a simple set of commands it's possible to realize complex and precise motion tasks. The system includes redundant safety-certified relays for a safe stop procedure in operation - if connected to the cobot safety output ports. The LIFTKIT-0S system comes with a bottom mounting plate and requires an upper custom plate (not supplied) to connect the cobot to the lifting column.
- Load up to 1,5 kN
- Speed up to 80 mm/s
- Stroke 500 to 1400 mm movement of vertical axis
- Compatible with any robot
Benefits:
- Extended operating range of any cobot to increase productivity and save costs
- Direct positioning access within the cobot controller
- Vibration-free and virtually maintenance-free movement
Features:
- General purpose unit
- Ready-to-use complete system
- Connection to the cobot via TCP/IP protocol on standard Ethernet port
- Simple set of commands to achieve a complete positioning control
- Robust column design for industrial use
