OSP-P with Guide

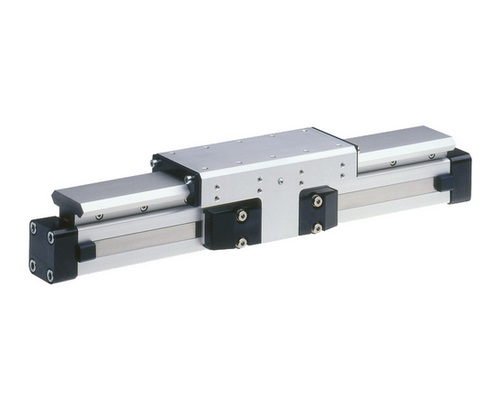

SL SLIDELINE Plain Bearing Guides
SLIDELINE Composite Plain Guide (Economic, Rigid, Moderate Speeds)
Cost-effective plain bearing guide for medium loads
- ATEX version is also available
- Anodized aluminium guide rail
- Low friction, adjustable plastic sliding elements
- Active and passive brake options
- Optional corrosion-resistant version
Technical Data
- Size Ø 16 to 80 mm
- Stroke lengths : up to 5500 mm
- Max. load : up to 2500 N
- Max. moments : up to 260 Nm
- Longer strokes on request

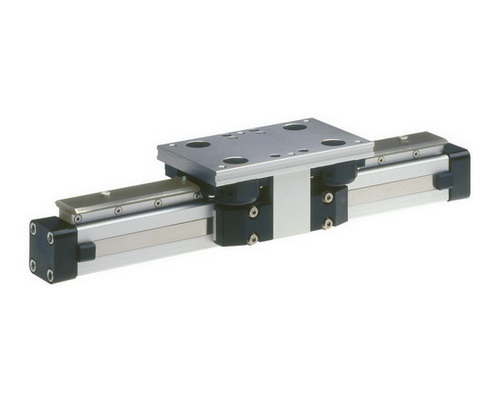

PS POWERSLIDE V-Roller Guides
POWERSLIDE V-Roller Guide (Robust, Harsh Environments)
Roller guide for heavy loads and hard application conditions
- Anodized aluminium guide carriage with adjustable rollers with 2 rows of ball bearings
- Hardened steel guide rail
- Several guide sizes can be used on the same drive
- Tough roller cover with wiper and grease nipple
- Optional corrosion-resistant version
Technical Data
- Size Ø 16 to 50 mm
- Stroke lengths : up to 3500 mm
- Max. load : up to 4000 N
- Max. moments : up to 350 Nm
- Speed : up to 3 m/s
- Longer strokes on request

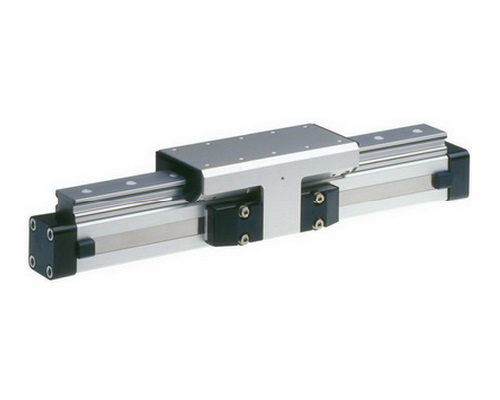

PL PLOLINE Aluminium Roller Guides
PROLINE Roller Guide (Smooth, Quite, Highly Dynamic)
Compact aluminium roller guide for high loads and speeds
- Ground and calibrated tracks
- Crosswise arranged rollers on needle bearings
- Integrated wiper system
- Smooth operation and high precision
- High load and moment capacity in all directions
- Optional with active or passive brake
- Compatible with SLIDELINE plain bearing guide
Technical Data
- Size Ø 16 to 50 mm
- Stroke lengths : up to 3750 mm
- Max. load : up to 3111 N
- Max. moments : up to 249 Nm
- Speed : up to 10 m/s

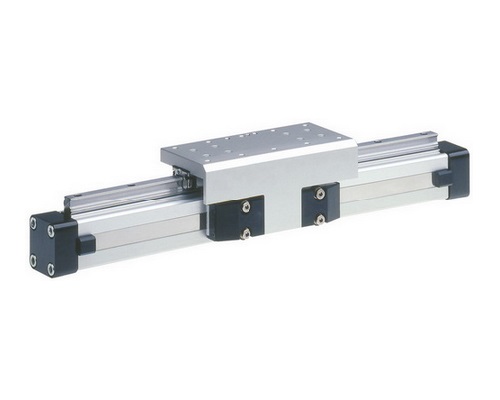

STL STARLINE Recirculating Ball Bearing Guides
STARLINE Recirculating Ball Bearing Guide ( Precision, Highly Rigid, Variable Stops)
Recirculating ball bearing guide for very high loads and precision
- Precision-ground, hardened steel guide rail
- For very high loads in all directions
- Integrated wiper system
- High precision
- Mounting dimensions of guide carriage are compatible with SLIDELINE and PROLINE
- Optional with variable stop for simple stroke limitation
Technical Data
- Size Ø 16 to 50 mm
- Stroke lengths : up to 3700 mm
- Max. load : up to 7500 N
- Max. moments : up to 580 Nm
- Speed : Ø16 to 3 m/s, Ø25-50 to 5 m/s
- Longer strokes on request

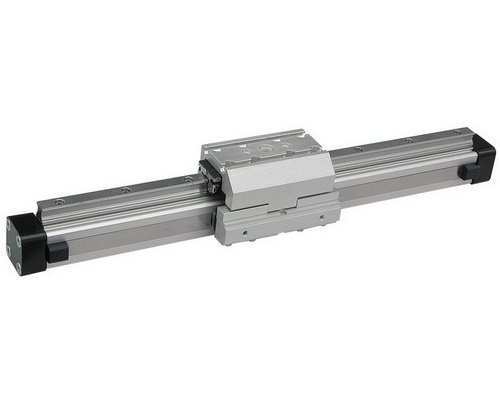

KF Recirculating Ball Bearing Guides
KF Recirculating Ball Bearing Guide
Series KF16 to KF50 For Linear Drives Series OSP-P CLASSIC
Features:
- Anodized aluminium guide carriage, the mounting dimensions corresond to FESTO Type: DGPL-KF
- Polished and hardened steel guide rail
- For high loads in all directions
- High precision
- Integrated wiper system
- Integrated grease nipples
- Any length of stroke up to 3700 mm
- Maximum speed : KF16, KF40: v = 3 m/s, KF25, KF32, KF50: v = 5 m/s

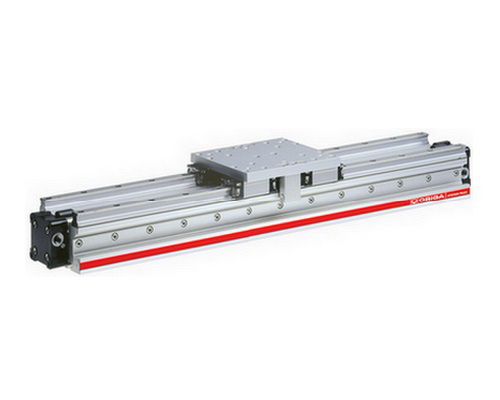

HD HEAVY DUTY Guides
Heavy duty guide HD Heavy Duty, Twin Rail (Max.Precision, Loading, Rigidity, Stability)
Recirculating ball bearing guide for highest loads and precision
- Guide with 4-row recirculating ball bearing system
- Precision-ground, hardened steel guide rail
- For highest loads in all directions
- Integrated wiper system
- Highest precision
- Mounting dimensions of guide carriage are compatible with GUIDELINE
- Optional with variable stop for simple stroke limitation
Technical Data
- Size Ø 25 to 50 mm
- Stroke lengths : up to 3700 mm
- Max. load : up to 18000 N
- Max. moments : up to 1400 Nm
- Speed : up to 5 m/s
- Longer strokes on request
