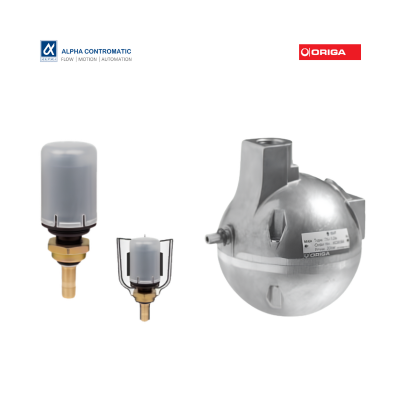

Automatic condensate drain valves 1/4, 1/2
Drain valve DV-1/4i, 1/2i
Float-controlled drain valve for automatic drainage of condensate from industrial filters used in compressed air technology. For installation in all plastic and metal reservoirs. Fitted in the ORIGA A25 and A50 series..
Drain valve DV-1/2e
Float-controlled drain valve for automatic drainage of condensate from compressed air lines and compressors. Tackles highly polluted condensate without problems. Installation instruction: Generally at the lowest point, where condensate and oil collect.
Specifications
- Port Size : G1/2”
- Operating Pressure : 0 – 16 bar
- Medium Temperature : 0 - 100 C
- Float Material : Stainless Steel
- Body Material : Aluminium Alloy
- Seal Material : Oil resistant o-ring
- Drain Capacity : up to 300 l/h
Features
- Mechanical Float Type Automatic Drian
- Discharges only the Condensate - Zero Air Loss
- Corrosion Resistance against Synthetic Lubricants
- Suitable for All Types of Compressors
- Reliable, Non-Noisy and Long Endurance
- Equipped with a Manual Purging Valve
