OSP-P basic unit

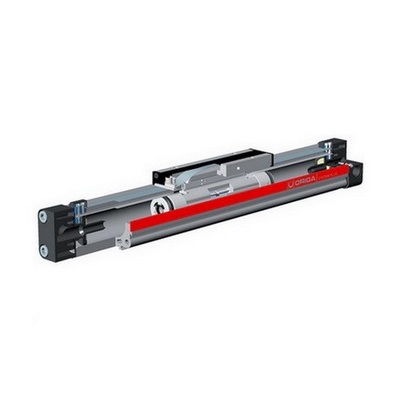

ORIGA SYSTEM PLUS OSP-P pneumatic rodless cylinders
ORIGA OSP-P pneumatic drives - the ORIGA rodless cylinders
Stainless steel sealing system
- Low friction for longest seal life (8,000 km)
- Extreme temperatures (- 40°C to + 120°C)
- Widest operating speed range (0.005 m/s to 30 m/s)
- Suitable for extremely demanding environments
Broadest size range
- Diameters: 10, 16, 25, 32, 40, 50, 63, 80 mm
- Any length of stroke up to 10,000 mm (up to 41,000 mm on request)
Most choice of integrated options
Mountings, brakes, sensors, encoders, control valves, extended cushioning,
shock absorbers, intermediate stops

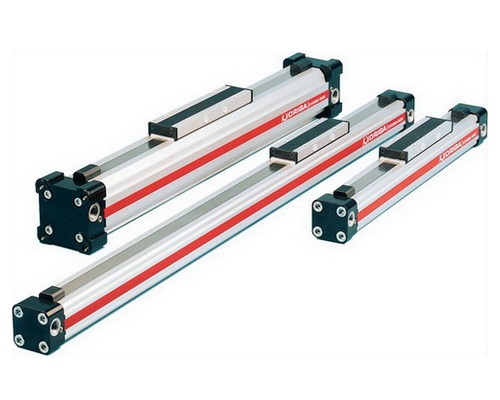

OSP-P Basic cylinders
OSP-P Basic pneumatic rodless cylinder
-
Bore size Ø 10 to 80 mm
-
Stroke lengths to 6000 mm, (up to 40 m. on request)
-
Double-acting with adjustable end cushioning
-
With magnetic piston for position sensing

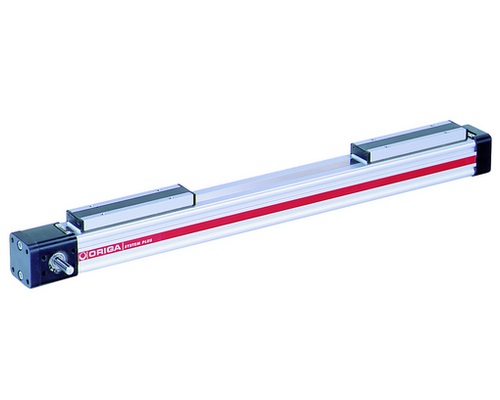

OSP-P Tandem Cylinders
OSP-P Tandem Cylinders
-
Bore size OSP-P Ø 10 to 80 mm
-
Two pistons are fitted
-
Higher load capacity
-
Increased support
-
Any stroke length

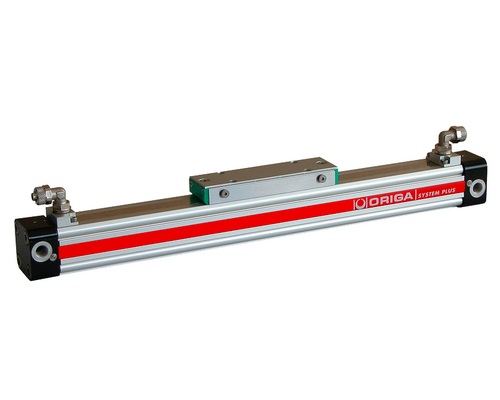

OSP-P Clean Room cylinders
For use in clean room applications, certified with the IPA-Certificate (to DIN EN ISO 14644-1).
The special design of the linear drive enables all emissions to be led away.
-
Clean Room classification
ISO Class 4 at Vm = 0.14 m/s
ISO Class 5 at Vm = 0.5 m/s
-
Suitable for smooth slow speed operation down to Vmin = 0.005 m/s
-
Optional stroke length up to 1200 mm. (longer strokes on request)
