Actuator Screw

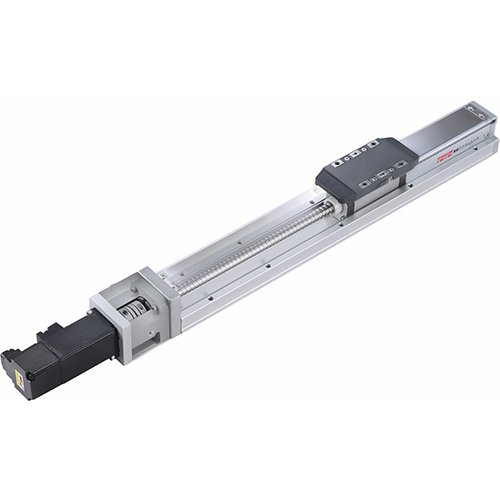

GTH ball screw drives
GTH Series is the next generation of the well known and widely used ETH Series. The Toyo GTH Series 4, 5, 8, and 12 replaces the ETH 5, 6, 10 and 12 and offers improved features and upgrades in a smaller frame size for equal load ratings.
- Repeatability: +0.005 (mm)
- Horizontal Range 10kg to 110kg
- Vertical Range 2kg to 33kg
- Maximum Speed: 100mm/s to 1600mm/s (w/ 32mm lead)
- Available Stroke Lengths: 50-1250 mm
- All ratings based on 10,000km travel life

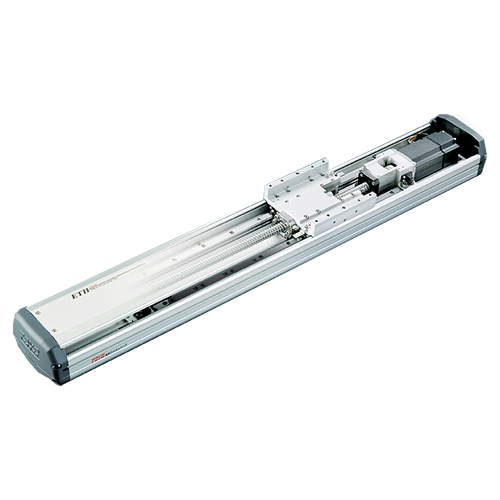

ETH ball screw drives
Ball screw driven actuators offer superior repeatability at a variety of payload options.
- Type : ETH5M ETH6M ETH10 ETH12 ETH13 ETH14 ETH17 ETH22
- Repeatability: +0.005 (mm)
- Horizontal Range from 13 kg up to 150kg
- Vertical Range from 6kg to 55kg
- Max Speed: 250mm/s to 2,000mm/s (w/ 40mm lead)
- Available Stroke Lengths: 50-2400mm
- All ratings based on 10,000km travel life
