Servo Cylinders

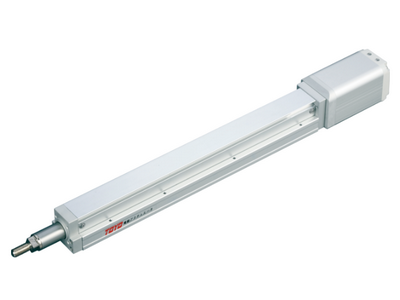

DGTY4 Ball Screw Type, Built-in Linear Motion Guide Servo Cylinder-Rod Type
Repeatability：±0.01(mm)
Ball Screw Lead：2/6/12(mm)
Maximum rotating speed: 3000/3600/3600(rpm)
Maximum Speed | Horizontal：≦100/≦360/≦720(mm/s)
Maximum Speed | Vertical：≦100/≦360/≦720 (mm/s)
Maximum Payload | Horizontal：≦25/≦20/≦12(kg)
Maximum Payload | Vertical：≦8/≦5/≦2 (kg)
Rated Thrust：827/276/138(N)
Stroke/Pitch ：50-500 / 50 pitch (mm)
*The maximum speed shown here is when software speed setting is 100%
* If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

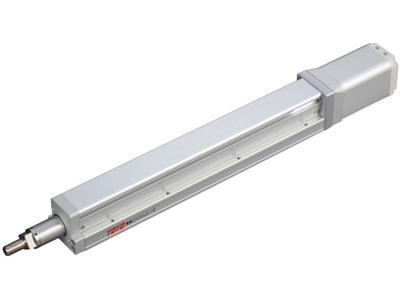

DGTY5 Ball Screw Type, Built-in Linear Motion Guide Servo Cylinder-Rod Type
Repeatability：±0.01(mm)
Ball Screw Lead：2/6/10/20/(mm)
Maximum rotating speed: 3000/3600/3600/3300(rpm)
Maximum Speed | Horizontal：≦100/≦300/≦600≦1100(mm/s)
Maximum Speed | Vertical：≦100/≦300/≦600≦1100(mm/s)
Maximum Payload | Horizontal：≦30/≦30/≦15/≦10 (kg)
Maximum Payload | Vertical：≦10/≦8.1/≦2.7≦1.4 (kg)
Rated Thrust：1147/459/229/115(N)
Stroke/Pitch ：50-600 / 50 pitch (mm)
*1 The maximum speed shown here is when software speed setting is 100%
*2 If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.
Ball Screw Lead：2/6/10/20/(mm)
Maximum rotating speed: 3000/3600/3600/3300(rpm)
Maximum Speed | Horizontal：≦100/≦300/≦600≦1100(mm/s)
Maximum Speed | Vertical：≦100/≦300/≦600≦1100(mm/s)
Maximum Payload | Horizontal：≦30/≦30/≦15/≦10 (kg)
Maximum Payload | Vertical：≦10/≦8.1/≦2.7≦1.4 (kg)
Rated Thrust：1147/459/229/115(N)
Stroke/Pitch ：50-600 / 50 pitch (mm)
*1 The maximum speed shown here is when software speed setting is 100%
*2 If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

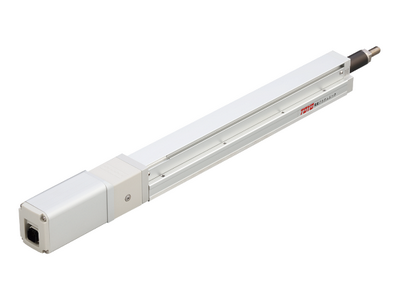

CGTY4 Ball Screw Type, built-in linear motion guide Servo Cylinder-Rod Type
Repeatability：±0.01(mm)
Ball Screw Lead：2 / 6/ 12(mm)
Maximum rotating speed:≦3000/≦3000/≦3000(rpm)
Maximum Speed | Horizontal：≦100 / ≦300 / ≦600 (mm/s)
Maximum Speed | Vertical：≦100 / ≦300 / ≦600 (mm/s)
Maximum Payload | Horizontal：≦25 / ≦20 / ≦12(kg)(kg)
Maximum Payload | Vertical：≦8/≦8/≦3.5(kg)
Rated Thrust：1094 /365 / 182(N)
Stroke/Pitch ：50-500 / 50(mm)
* The maximum speed shown here is when software speed setting is 100%
* It payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

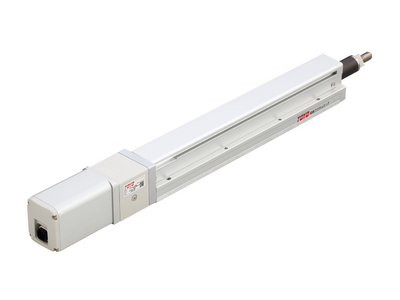

CGTY5 Ball Screw Type, built-in linear motion guide Servo Cylinder-Rod Type
Repeatability：±0.01(mm)
Ball Screw Lead：2 / 5 / 10 / 20(mm)
Maximum rotating speed:≦3000/≦3000/≦3000/≦3000(rpm)
Maximum Speed | Horizontal：≦100 / ≦250 / ≦500 / ≦1000(mm/s)
Maximum Speed | Vertical：≦100 / ≦250 / ≦500 / ≦1000(mm/s)
Maximum Payload | Horizontal：≦30 / ≦30 / ≦15 / ≦10(kg)
Maximum Payload | Vertical：≦10/≦10/≦5/≦2.5(kg)
Rated Thrust：1147 / 459 / 229 / 115(N)
Stroke/Pitch ：50-600 / 50(mm)
* The maximum speed shown here is when software speed setting is 100%
* It payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

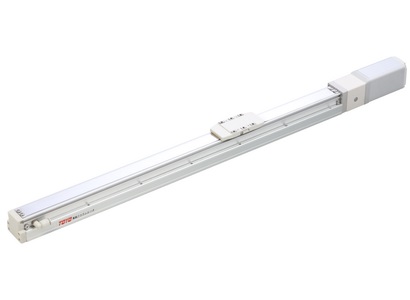

CGCH4 Ball Screw Type, Built-In linear guideways, For Clean room type
Repeatability：±0.005 (mm)
Ball Screw Lead：2 / 6 / 12 (mm)
Maximum rotating speed:≦3000/≦3000/≦3000 (rpm)
Maximum Speed | Horizontal：≦100 / ≦300 / ≦600 (mm/s)
Maximum Speed | Vertical：≦100 / ≦300 / ≦600 (mm/s)
Maximum Payload | Horizontal：≦25 / ≦20 / ≦12 (kg)
Maximum Payload | Vertical：≦8 / ≦8 / ≦3.5 (kg)
Rated Thrust：1094/365/182 (N)
Stroke/Pitch ：50-1000/ 50 (mm)
* The maximum speed shown here is when software speed setting is 100%
* The maximum speed and maximum payload cannot exist at the same time .
Please refer to diagram of Speed and payload curve before using.
* During in a long stroke , it causes ballscrew deflection the speed must reduce.

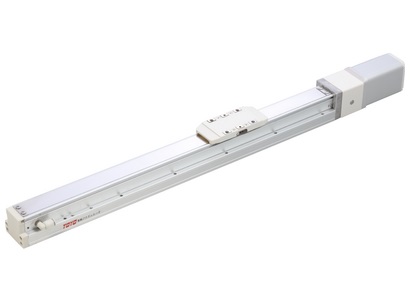

CGCH5 Ball Screw Type, Built-In linear guideways, Clean room type
Ballscrew Accuracy Grade code: L
Ballscrew Accuracy code: C7 Rolled Ballscrews
Repeatability：±0.005(mm)
Stroke/Pitch ：50-1050 / 50 pitch (mm)
Ball Screw Lead：2 / 5 (mm)
Maximum rotating speed: ≦3000/≦3000 (rpm)
Maximum Speed | Horizontal：≦100/≦250 (mm/s)
Maximum Speed | Vertical ：≦100/≦250 (mm/s)
Maximum Payload | Horizontal ：≦30 / ≦30 (kg)
Maximum Payload | Vertical ：≦10/≦10 (kg)
Rated Thrust：1147/459(N)
______________________ ___________________
Ballscrew Accuracy Grade code: C
Ballscrew Accuracy code: C5 Ground Ballscrews
Repeatability：±0.003 (mm)
Stroke/Pitch ：50-300 / 50 pitch (mm)
Ball Screw Lead：10 / 20 (mm)
Maximum rotating speed: ≦3000/≦3000(rpm)
Maximum Speed | Horizontal：≦500 / ≦1000 (mm/s)
Maximum Speed | Vertical ：≦500 / ≦1000 (mm/s)
Maximum Payload | Horizontal ：≦15 / ≦10 (kg)
Maximum Payload | Vertical ：≦5/ ≦2.5 (kg)
Rated Thrust：229 /115 (N)
* 1 The maximum speed shown here is when software speed setting is 100%
* 2 The maximum speed and maximum payload cannot exist at the same time . Please refer to diagram of Speed and
payload curve before using.
* 3 During in a long stroke. it causes ballscrew deflection , the speed must redice.
