Chemical Fitting

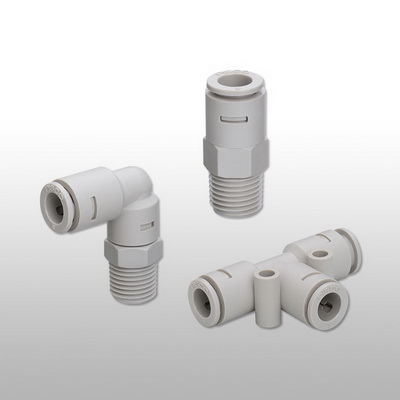

PISCO: AP Series Tube Fitting Chemical Type
All-resin (PPS) made fitting, which possesses excellent heat resistance, noncombustible (UL94 V-0 equivalent) and chemical resistance and the seal is made of fluoric rubber, to meet a wide variety of applications.
Type description : Chemical types (metel-free)
Tube size O.DxI.D. (mm) : 4 – 12
Thread size : R1/8″ – R1/2″
Fluid medium : Air, Water, Others chemicals
Max Pressure/vacuum (bar) : 9
Operating temp. : 0 ~ 80 ºC

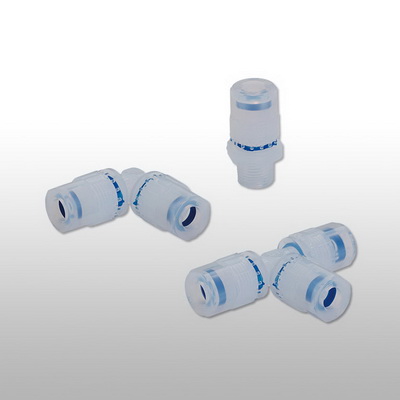

PISCO: F Series Fluororesin Fitting Type
Suitable for chemical liquid piping in semiconductor manufacturing process.
Type description : Fluororesin types (PFA)
Tube size O.DxI.D. (mm) : 3×2, 4×3, 6×4, 8×6, 10×8, 12×10, 19×15.8, 25×22
Thread size : R1/8″ – R1″, Rc1/8″ – Rc1″
Fluid medium : Liquid
Max Pressure/vacuum (bar) : 7 at 0 ~ 60 ºC
Operating temp. : 0 ~ 200 ºC

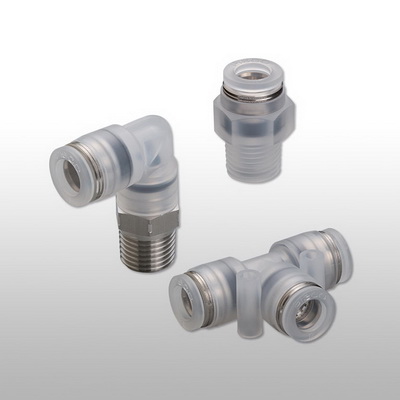

PISCO: PP Series Tube Fitting PP / SUS304
PP (Polypropylene) is selected for the body material and EPDM for seal material to adapt to clean environment.
Type description : PP/PP+SUS304
Tube size O.DxI.D. (mm) : 4 – 12
Thread size : M3x0.5, M5x0.8, R1/8″ – R1/2″
Fluid medium : Air, Water, Others such as chemicals
Max Pressure/vacuum (bar) : 10
Operating temp. : 0 ~ 80 ºC

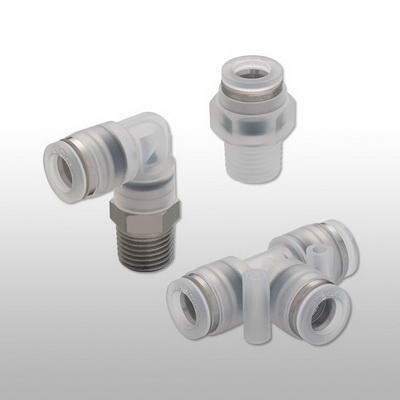

PISCO: SPP Series Tube Fitting PP/SUS303 like Corrosivity
PP (Polypropylene) is selected for the body material and EPDM for seal material to adapt to clean environment.
Type description : PP/PP+SUS303
Tube size O.DxI.D. (mm) : 4 – 12
Thread size : M3x0.5, M5x0.8, R1/8″ – R1/2″
Fluid medium : Air, Water, Others
Max Pressure/vacuum (bar) : 10
Operating temp. : 0 ~ 80 ºC
