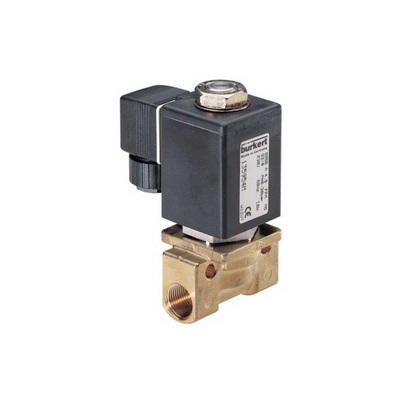

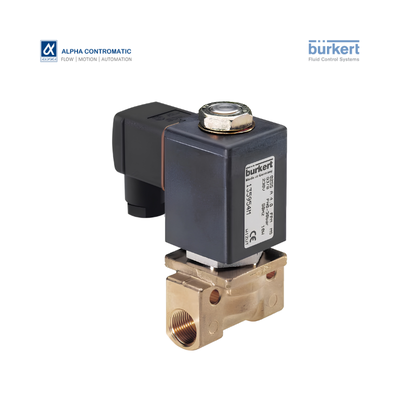

The direct-acting plunger solenoid valve Type 0255 is also suitable for high pressures and high temperatures.

• Push-over solenoid system
• Compact design, up to DN 6
• Housing made of brass or stainless steel with threaded connection

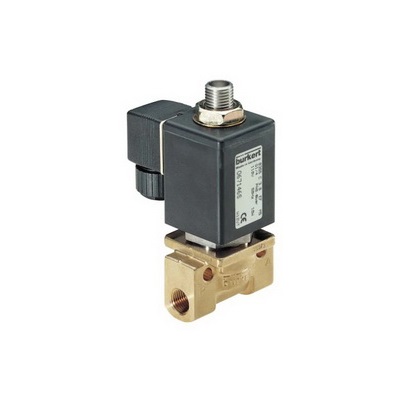

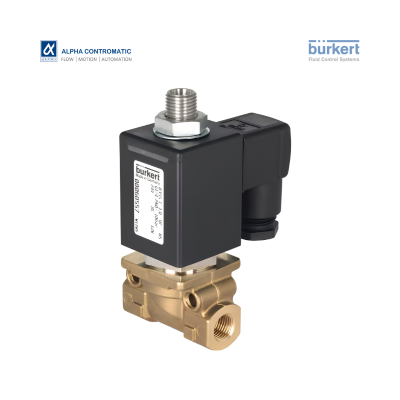

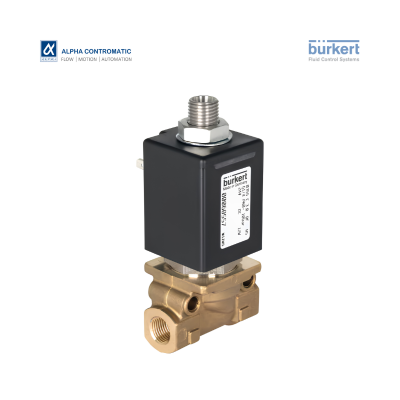

Direct-acting plunger solenoid valve Type 0355 for controlling hot media such as steams, oils and gases

• 3/2-way seat valve direct-acting
• Push-over coil system
• Medium temperature up to +180°C
• for liquid and gaseous media

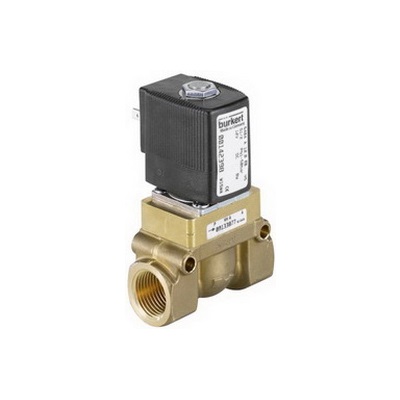

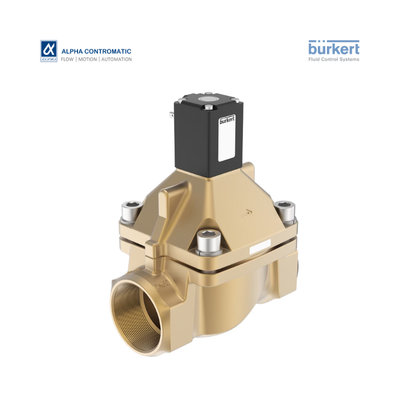

The 5404 valve is a servo-assisted piston valve available in NC and NO versions. A minimum differential pressure is required for the valve switching function. The solenoid coils are moulded with high-quality epoxy resin. In combination with a plug to DIN EN 175301-803 Form A, the valves satisfy degree of protection IP65. The plug is not included and must be ordered separately.

• Servo-assisted piston valve with an orifice up to DN50
• Explosion proof versions for Cat. 2
• Suitable for gas and steam applications up to 160°C
• Relief valves for compressors

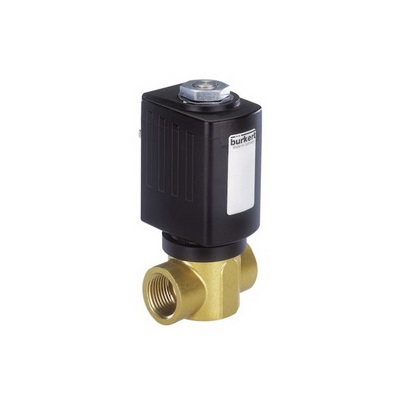

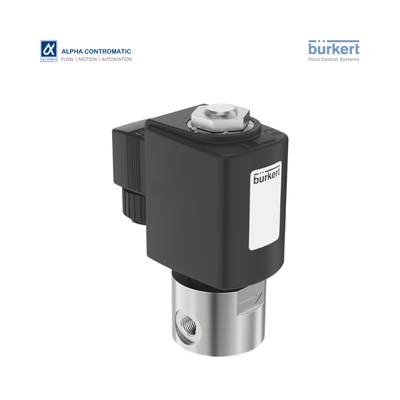

Valve 6027 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. The coils are moulded with chemically resistant epoxy. An optional sliding ring bearing increases the service life with dry gases. Special seal technology is used for high-pressure applications. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.

• Direct-acting, powerful valve with diameter of up to DN13
• Vibration-proof, bolted coil system
• Increased leak-tightness with welded plunger guide tube
• Explosion proof versions
• High pressure variants for gases and liquids

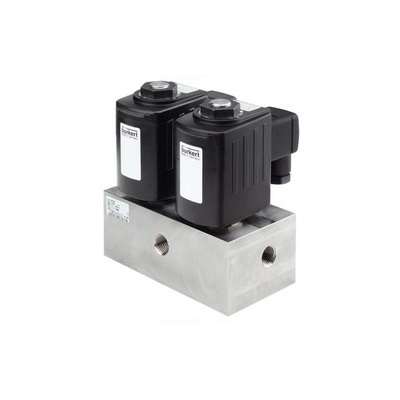

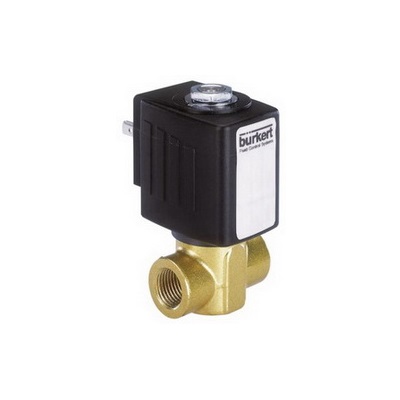

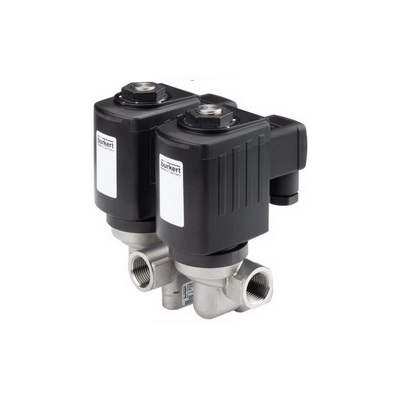

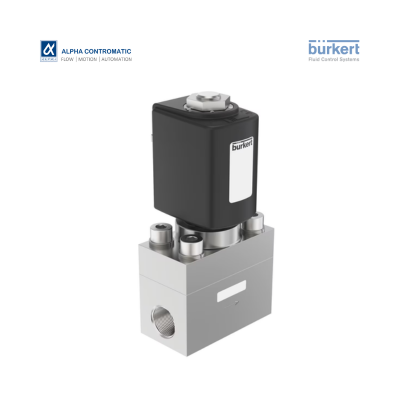

The 6240 valve is a servo-assisted piston valve. The stopper and plunger guiding tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. The housing design and surface quality enable maximum flow rates. The coils are moulded with chemically resistant epoxy. An optional sliding ring bearings increases the life cycle with dry gases. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.

• Servo-assisted and compact piston valve with diameter of up to DN 13
• Vibration-resistant , screwed coil system
• Increased leak-tightness with welded plunger guiding tube
• Safe opening with hard-coupled piston system
• Explosion proof versions

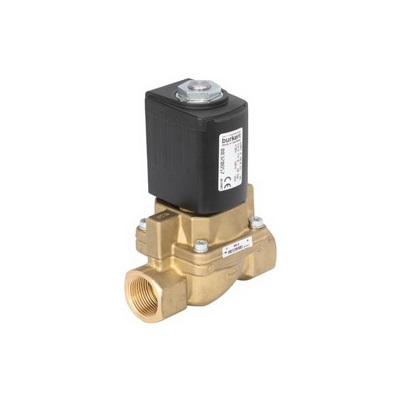

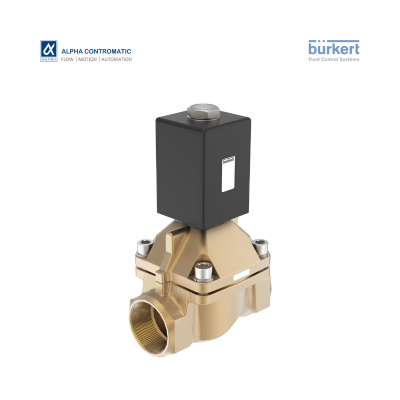

The Type 6407 valve is a servo-assisted piston valve. The fix coupling between pilot valve and piston provides an opening of the valve without pressure difference. As a piston valve, the Type 6407 is particular suitable for media such as gas and steam. As well as liquids with low operating temperature below 0°C.The stopper and the core guide pipe are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. The coils are moulded with chemically resistant epoxy. To reduce power consumption in operation, coils with "Kick and Drop" (KD) electronics (double coil technology) are available. In combination with a plug acc. to DIN EN 175301-803 Form A, the valves satisfy IP65 degree of protection.

• Servo-assisted piston valve up to DN50 orifice
• Safe opening with hard-coupled piston system without differential pressure
• Vibration-resistant, push-over coil system
• Explosion-proof versions
• Energy-saving double coil technology with kick and drop design
