Filter Regulators

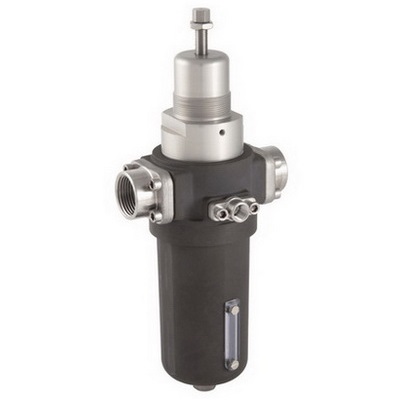

210FR Aluminum medium pressure filter regulator for compressed air.
Inlet pressure up to 30 bar (435 psi).
Inlet and outlet connections: 3/4”-F; 1”-F; 1”1/4-F; 1”1/2-F;
GAS or NPT by flanges screwed to the body.
Connections with EN or ASME flanges available on request.
Outlet pressure is controlled by an aluminum piston. The main valve is balanced.
Overpressure relieving function. Filtration rate: 5 μm or 50 μm.
Available automatic condensate drain SAI or Semi-automatic drain SS up to 16 bar (232 psi).
Manual drain SM or cap up to 30 bar (435 psi).
Relieving in the standard execution.

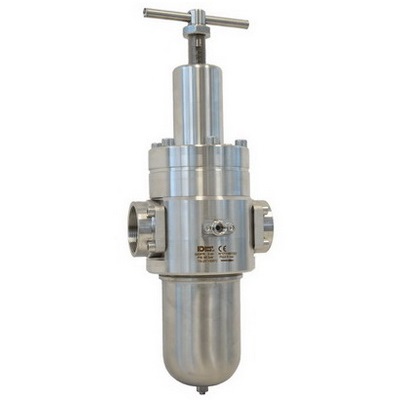

320FR Stainless steel AISI 316L filter regulator for air, gas and liquid.
nlet pressure up to 50 bar (725 psi).
Connections by flanges screwed to the body.
320FR 1 ½”-F
320FR 2”-F
Outlet pressure is controlled by a stainless steel AISI 316L piston.
Main valve is balanced. Filtration: 5 μm or 50 μm.
Available versions with automatic drain SAI (up to 16 bar)
or manual drain SM (up to 30 bar).
Hexagonal cap drain for gas and liquid versions.

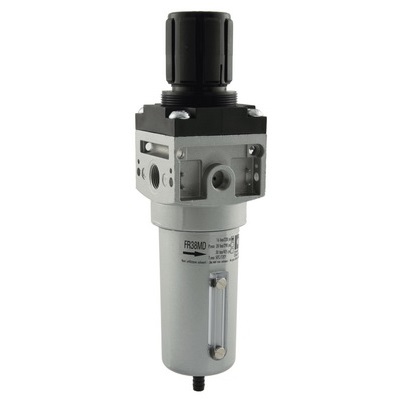

FR12MD, FR38MD Modular filter-regulators for compressed air.
Inlet pressure up to 30 bar (435 psi).
Inlet and outlet connections 1/2” – F and 3/8” – F in the body.
Outlet pressure is controlled by a rubber diaphragm.
Balanced main valve.
Cast aluminium body and bowl, plastic bonnet.
Modular design to couple with same series: lubricator.
Holes for wall mounting.
Pressure adjusting knob with lock system.
Overpressure relieving function.
Filtration rate: 5 or 50 μm.

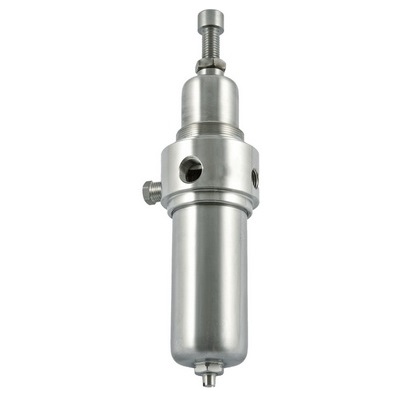

4S3 Stainless steel AISI 316L filter regulator for air, gas and liquid.
Inlet pressure up to 30 bar (435 psi) in the standard version.
Connections ¼”-F. Outlet pressure is controlled by a rubber diaphragm.
Main valve is balanced.
Filtration: 5 μm or 50 μm.
Available versions with automatic drain SAI (up to 16 bar) or manual drain SM (up to 30 bar).
The drain is not available for greater inlet pressure and for gas and liquid versions. Available the ATEX 2014/34/EU version.
Brand CE ExII2GcIICTX, CE ExII2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not for mines and zone 0).
