Filters

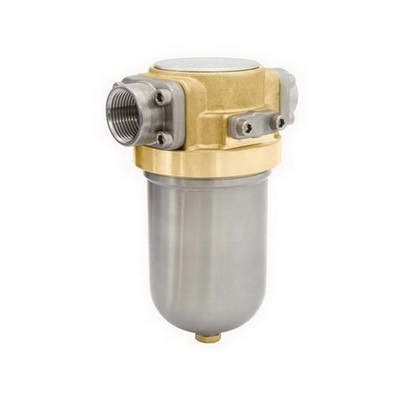

110F2 Brass filters for compressed air, gas and liquid.
Inlet pressure:
16 bar with automatic (SAI), semiautomatic (SS)
30 bar with manual drain (SM)
50 bar without drain (CAP.)
Inlet and outlet standard connections: 3/4”-F, 1”-F, 1”1/4-F, 1”1/2-F (GAS/NPT),
UNI EN 1092-1, ASME B16.5 flanges available on request.
Standars filtration rate: 50 μm
On request filtration rate: 5μm, or coalescing (0.01 μm/99.99%).
Available the ATEX 2014/34/EU version.
Brand CE Ex II2GcIICTX, CE Ex II2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not for mines and zone 0).

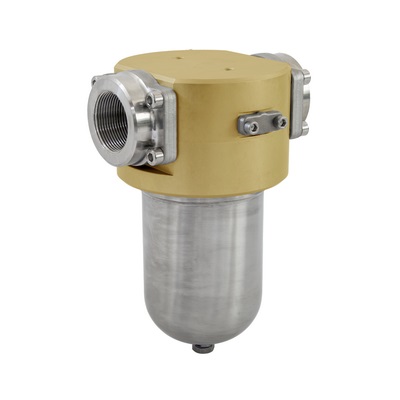

120F2 Brass filters, suitable for gas and liquid.
Inlet pressure up to 50 bar (725 psi).
Inlet and outlet connections 1” 1/2” – F and 2” – F.
Other connections available on request.
Brass body and drawn stainless steel AISI 316L bowl.
Standard filtration rate 5 or 50 μm.
Condensation drain:
automatic drain SAI for pressure up to 15 bar (232 psi),
manual for pressure up to 30 bar (435 psi),
hexagonal cap for pressure up to 50 bar (725 psi).
Available units composed of: Filter + Regulator + Lubricator.

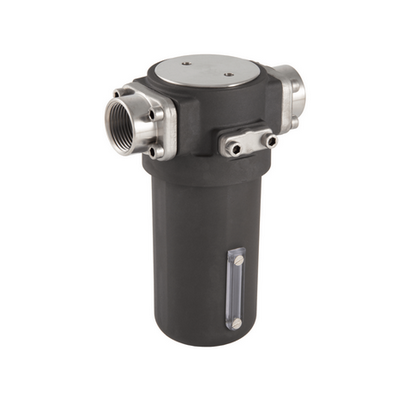

210F2 Medium pressure aluminum filters serie 10 for compressed.
Inlet pressure up to 30 bar (435 psi) in the standard version.
Inlet and outlet standard connections: 3/4”-F; 1”-F;
Connections on request: 1”1/4-F; 1”1/2-F
and versions NPT made by flanges screwed to the body.
Connections with EN or ASME flanges available on request.
Standars filtration rate: 50 μm.
On request filtration rate: 5μm, or coalescing (0.01 μm/99.99%).
Compressed air condensation drain:
up to 16 bar with automatic drain (SAI) or semi-automatic drain (SS)
up to 30 bar with manual drain (SM), CAP.
Available units composed of: Filter + Regulator + Lubricator.
Available the ATEX 2014/34/EU version.
Brand II2GcIICTX, II2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not for mines and zone 0).

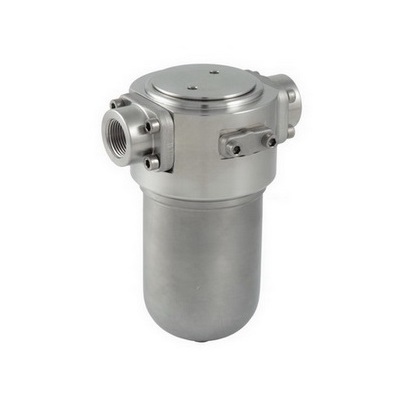

310F2 Stainless steel AISI 316L filter serie 10 for compressed air, gases and liquids.
Inlet pressure:
16 bar with automatic (SAI), semiautomatic (SS)
30 bar with manual drain (SM)
50 bar without drain (CAP.)
Inlet and outlet connections: 3/4”-F, 1”-F, 1”1/4-F, 1”1/2-F (on request)
and versions NPT made by flanges screwed to the body.
Connections with EN or ASME flanges available on request.
Standars filtration rate: 50 μm
On request filtration rate: 5μm, or coalescing (0.01 μm/99.99%).
Available the ATEX 2014/34/EU version.
Brand CE ExII2GcIICTX, CE ExII2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not for mines and zone 0).

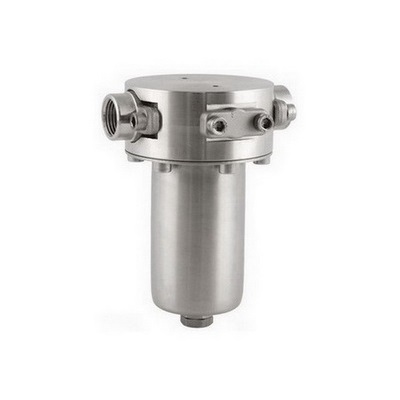

312F2 Filter stainless steel AISI 316L for compressed air, gas and liquid.
Inlet pressure up to 50 bar (725 psi).
Connection ports: 3/8″G-F, 1/2″G-F, 3/8″NPT-F, 1/2″NPT-F
Flanged connections available on request.
Filtration rate 50 or 5 µm.
Different kind of condensate drain available
The product complies with the 2014/68/EU PED directive.
Available ATEX 2014/34/UE version
Other versions on request.
For use in potentially explosive atmosphere zones:
1, 21, 2, 22 (not applicable in mines and zone 0).

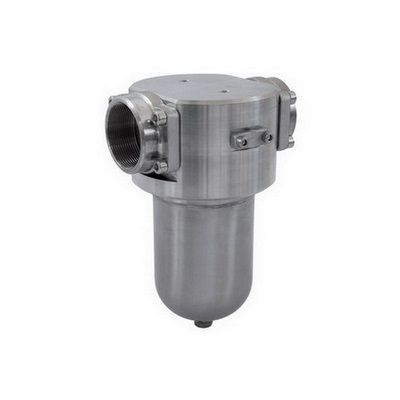

320F2 Filter stainless steel AISI 316L for compressed air, gas and liquids.
Inlet pressure up to 50 bar (725 psi) in the standard version.
Connections 1 ½”-GF and 2”-GF by flanges screwed to the body.
Other connections available on request.
Available with filtration: 5 μm or 50 μm.
Automatic drain SAI (up to 15 bar) or manual drain SM (up to 30 bar).
Hexagonal cap drain for inlet pressure greater than 30 bar
and for gas and liquids versions.
Available the ATEX 2014/34/EU version
Brand CE ExII2GcIICTX, CE ExII2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not applicable in mines and zone 0).
