The MAX-1 and MAX-3 are powerful and very quiet DC linear actuators, take up little space and can be installed at virtually every angle in both vertical or horizontal positions. The series is medically approved and available with options such as anti pitching, incremental position feedback and emergency lowering. The MAX-1 and MAX-3 can be supplied as a full system with control, operating units and accessories using 24 VDC output voltage.



Push load up to 8 kN

Pull load   up to 6 kN

Max stroke 50 to 700 mm

Max linear speed up to 12,7 mm/s

Voltage: 12 or 24 V DC

Operating temp. 0 to +40 °C

Type of protection IP66S

Duty cycle 10%

Silent operation



- Compact and stylish design for medical devices

- Silent operation

- Complete system with control unit, operating devices and accessories

- Synchronisation capability



- Medically approved in accordance with IEC 60601-1

- Compatible control units, operating devices and accessories available

- Spindle supplied as standard

- Safety factor of up to 4 times

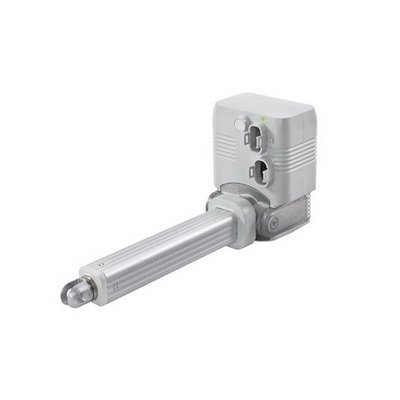

The Max-7 range includes powerful AC actuators with a 24 VDC motor. They run very quietly, take up little space and can be installed at virtually every angle in both vertical or horizontal positions. The series is medically approved and available with options such as anti pitching, incremental position feedback and emergency lowering. The Max-7 has an integrated control unit and both operating devices and accessories can be supplied.



Push load up to 8 kN
Pull load   up to 6 kN
Max stroke 50 to 700 mm

Max speed no load up to 13 mm/s

Voltage: 120 or 230 V AC

Operating temp. 0 to +40 °C

Type of protection IP66S

Duty cycle 10%

Full system with built-in control unit



- Designed for medical devices, compliant to IEC 60601-1

- Silent operation

- Compatible control units, operating devices and accessories

- Synchronisation capability



- Medically approved in accordance with IEC 60601-1

- Compatible control units, operating devices and accessories available

- Spindle supplied as standard

- Safety factor of up to 4 times
