PV Gearheads

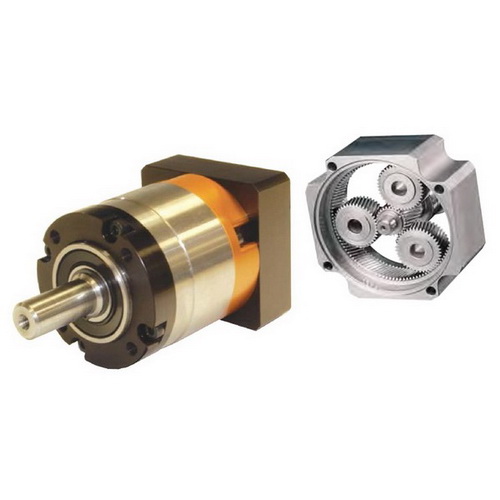

PV series - Standard Precision Inline Planetary Gearheads


PV-series gearheads provide exceptional value along with high performance to meet your applications torque, inertia, speed and accuracy requirements. Available in multiple frame sizes and ratios to meet a variety of application requirements. Available in 40-115 mm./
NEMA17 - 42 frame sizes with universal mounting kits for easy output face crossover.

Features and Benefits
  • Standard NEMA, Metric and competitor face dimensions
  • Ring gear cut into housing provides greater torsional stiffness
  • Taper roller or deep groove ball bearing options provide output shaft with high radial and axial load capability
  • Plasma nitride heat treatment for gears for excellent surface wear and shear strength
  • Sealed to IP64 to protect against harsh environments
  • Mounting kits for direct and easy assembly to hundreds of different motors
Technical Specifications
  • Performance: Standard Precision
  • Configuration: Inline
  • Gear Geometry: Planetary
  • Frame Size: 40, 60, 90, 115 mm. / NEMA 17, 23, 34, 42
  • Backlash: < 8 to < 18 arc-min, -
  • Rated Torque: 3.5 – 144 Nm, 31 – 1274 lb-inch
  • Radial Load Capacity: 2370 lb
  • Ratio: 3, 4, 5, 7, 10, 12, 15, 16, 20, 25, 30, 35, 40, 50, 70, 100:1
  • Maximum Input Speed: 8000 RPM
  • Protection Rating: IP64
