Servo Cylinders


ETH Series High-Force Electric Cylinders


The ETH electro cylinder closes the gap between pneumatic and hydraulic actuators; it can act as a suitable alternative to both in many applications and can have the added benefit of increasing the reliability of the production process. Taking the costs for air and oil into consideration, you will find that in most cases an electromechanical system such as the ETH electro cylinder offers the more economical solution. Combined with a wide choice of accessories, the ETH becomes a highly customisable solution, suitable for a variety of applications.

Features & Benefits
  • 3 profile sizes (ISO 32, 50 & 80)
  • Oversized ballscrews and thrust bearings
  • 4-5X higher force or 10X longer life
  • Maximum thrust: 7000 N
  • Maximum stroke: 1.6 m
  • Maximum speed: 1.7 m/s
  • Duty cycle: 100%
  • P65, IP67, and Custom IP69K capabilities
  • Stainless Steel capabilities
  • Linear motor version option

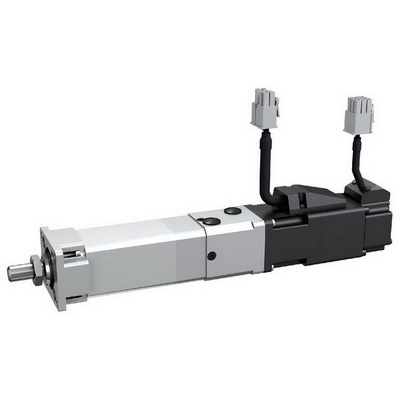

CASM-25 Electric cylinders


The CASM-25 actuator is a customisable solution designed for light automation applications and the electronic manufacturing industry.
This miniature actuator can deliver high static and dynamic force with precise motion and long life in operation.

Features:
- Compact design, Light weight
- High load capacity (Static 2.6 kN, Max dynamic force 300N)
- Max linear speed 125 mm/s
- High positioning accuracy and repeatability due to precision ballscrews
- High working cycles
- Practically maintenance-free

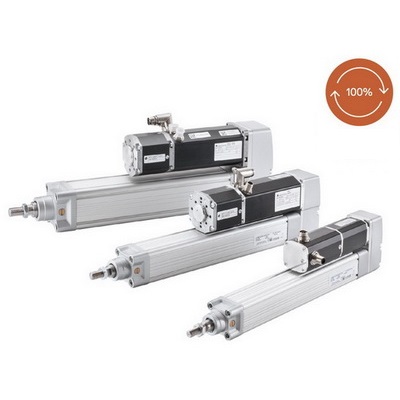

CASM-32/40/63 Electric cylinders


CASM electric cylinders are ideally suited to perform fast and powerful linear movements. Unlike pneumatic or hydraulic cylinders, CASM electric cylinders are flexible and thus can be positioned accurately.

Features:
- Modular system, 3 different sizes and 3 screw types to fit each size
- Max dynamic force 5400N
- Max linear speed 1.050 mm/s
- Max stroke 800 mm
- Pneumatic cylinder ISO dimensions

TOYO: DGTY4 Ball Screw Type, Built-in Linear Motion Guide Servo Cylinder-Rod Type


Repeatability:±0.01(mm)
Ball Screw Lead:2/6/12(mm)
Maximum rotating speed: 3000/3600/3600(rpm)
Maximum Speed | Horizontal:≦100/≦360/≦720(mm/s)
Maximum Speed | Vertical:≦100/≦360/≦720 (mm/s)
Maximum Payload | Horizontal:≦25/≦20/≦12(kg)
Maximum Payload | Vertical:≦8/≦5/≦2 (kg)
Rated Thrust:827/276/138(N)
Stroke/Pitch :50-500 / 50 pitch (mm)

*The maximum speed shown here is when software speed setting is 100%
* If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.


TOYO: DGTY5 Ball Screw Type, Built-in Linear Motion Guide Servo Cylinder-Rod Type


Repeatability:±0.01(mm)
Ball Screw Lead:2/6/10/20/(mm)
Maximum rotating speed: 3000/3600/3600/3300(rpm)
Maximum Speed | Horizontal:≦100/≦300/≦600≦1100(mm/s)
Maximum Speed | Vertical:≦100/≦300/≦600≦1100(mm/s)
Maximum Payload | Horizontal:≦30/≦30/≦15/≦10 (kg)
Maximum Payload | Vertical:≦10/≦8.1/≦2.7≦1.4 (kg)
Rated Thrust:1147/459/229/115(N)
Stroke/Pitch :50-600 / 50 pitch (mm)

*1 The maximum speed shown here is when software speed setting is 100%
*2 If payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.


TOYO: CGTY4 Ball Screw Type, built-in linear motion guide Servo Cylinder-Rod Type


Repeatability:±0.01(mm)
Ball Screw Lead:2 / 6/ 12(mm)
Maximum rotating speed:≦3000/≦3000/≦3000(rpm)
Maximum Speed | Horizontal:≦100 / ≦300 / ≦600 (mm/s)
Maximum Speed | Vertical:≦100 / ≦300 / ≦600 (mm/s)
Maximum Payload | Horizontal:≦25 / ≦20 / ≦12(kg)(kg)
Maximum Payload | Vertical:≦8/≦8/≦3.5(kg)
Rated Thrust:1094 /365 / 182(N)
Stroke/Pitch :50-500 / 50(mm)

* The maximum speed shown here is when software speed setting is 100%
* It payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

TOYO: CGTY5 Ball Screw Type, built-in linear motion guide Servo Cylinder-Rod Type


Repeatability:±0.01(mm)
Ball Screw Lead:2 / 5 / 10 / 20(mm)
Maximum rotating speed:≦3000/≦3000/≦3000/≦3000(rpm)
Maximum Speed | Horizontal:≦100 / ≦250 / ≦500 / ≦1000(mm/s)
Maximum Speed | Vertical:≦100 / ≦250 / ≦500 / ≦1000(mm/s)
Maximum Payload | Horizontal:≦30 / ≦30 / ≦15 / ≦10(kg)
Maximum Payload | Vertical:≦10/≦10/≦5/≦2.5(kg)
Rated Thrust:1147 / 459 / 229 / 115(N)
Stroke/Pitch :50-600 / 50(mm)

* The maximum speed shown here is when software speed setting is 100%
* It payload is near maximum ,it requires to collocate externally with auxiliary guideway for bearing radial load.

TOYO: CGCH4 Ball Screw Type, Built-In linear guideways, For Clean room type


Repeatability:±0.005 (mm)
Ball Screw Lead:2 / 6 / 12 (mm)
Maximum rotating speed:≦3000/≦3000/≦3000 (rpm)
Maximum Speed | Horizontal:≦100 / ≦300 / ≦600 (mm/s)
Maximum Speed | Vertical:≦100 / ≦300 / ≦600 (mm/s)
Maximum Payload | Horizontal:≦25 / ≦20 / ≦12 (kg)
Maximum Payload | Vertical:≦8 / ≦8 / ≦3.5 (kg)
Rated Thrust:1094/365/182 (N)
Stroke/Pitch :50-1000/ 50 (mm)

* The maximum speed shown here is when software speed setting is 100%
* The maximum speed and maximum payload cannot exist at the same time .
   Please refer to diagram of Speed and payload curve before using.
* During in a long stroke , it causes ballscrew deflection the speed must reduce.

TOYO: CGCH5 Ball Screw Type, Built-In linear guideways, Clean room type


Ballscrew Accuracy Grade code: L
Ballscrew Accuracy code: C7 Rolled Ballscrews
Repeatability:±0.005(mm)
Stroke/Pitch :50-1050 / 50 pitch (mm)

Ball Screw Lead:2 / 5 (mm)
Maximum rotating speed: ≦3000/≦3000 (rpm)
Maximum Speed | Horizontal:≦100/≦250 (mm/s)
Maximum Speed | Vertical :≦100/≦250 (mm/s)
Maximum Payload | Horizontal :≦30 / ≦30 (kg)
Maximum Payload | Vertical :≦10/≦10 (kg)
Rated Thrust:1147/459(N)
______________________ ___________________
Ballscrew Accuracy Grade code: C
Ballscrew Accuracy code: C5 Ground Ballscrews
Repeatability:±0.003 (mm)
Stroke/Pitch :50-300 / 50 pitch (mm)

Ball Screw Lead:10 / 20 (mm)
Maximum rotating speed: ≦3000/≦3000(rpm)
Maximum Speed | Horizontal:≦500 / ≦1000 (mm/s)
Maximum Speed | Vertical :≦500 / ≦1000 (mm/s)
Maximum Payload | Horizontal :≦15 / ≦10 (kg)
Maximum Payload | Vertical :≦5/ ≦2.5 (kg)
Rated Thrust:229 /115 (N)

* 1 The maximum speed shown here is when software speed setting is 100%
* 2 The maximum speed and maximum payload cannot exist at the same time . Please refer to diagram of Speed and
payload curve before using.
* 3 During in a long stroke. it causes ballscrew deflection , the speed must redice.
