Ball Screw

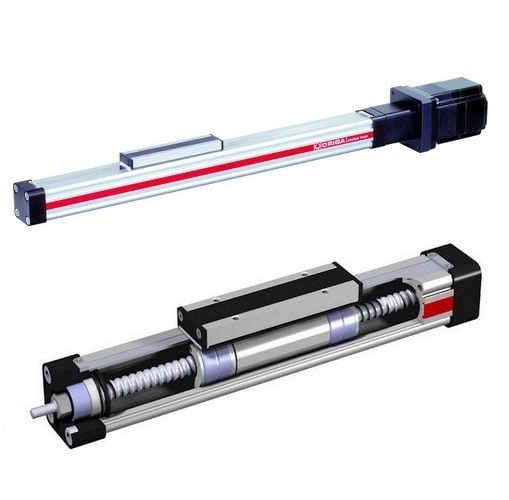

OSP-E..SB Linear drives with ball screw drive


OSP-E..SB Ball Screw Actuator with Internal Plain Bearing Guide
Ball Screw Actuator with Internal Plain Bearing Guide for High Accuracy Applications.

Advantages:
  • Accurate path and Position control
  • High force output
  • Easy installation
  • Excellent Slow Speed Characteristics
  • Ideal for Precise Traverse Operations (e.g. Machine Feeds) and Lifting Applications
Features:
  • Integrated Drive and Guidance System
  • Complete Motor and Control Packages
  • Diverse Range of Accessories and Mountings
  • Optimal Screw Pitches (5, 10, 25 mm)
Specifications:
  • Version: with ball screw drive
  • Size: 25, 32, 50 mm.
  • Pitch: 5, 10, 25 mm.
  • Max.Action force: up to 1500 N
  • Max.Speed: 1.25 m/s
  • Max.Stroke: up to 3200 mm.
  • Temp.range: -20 to +80’C

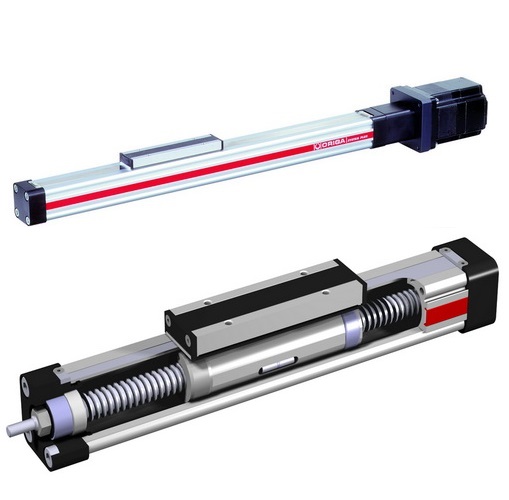

OSP-E..ST Linear drives with trapezoidal screw drive


OSP-E..ST Trapezoidal Screw Actuator with Internal Plain Bearing Guide
Trapezoidal Screw Actuator with Internal Plain Bearing Guide for Intermittent Applications

Advantages:
  • Accurate Path and Position Control
  • High Force Output
  • Self-Locking
  • Excellent Slow Speed Characteristics
  • Easy Installation
  • Low Maintenance
  • Ideal for Level Regulation, Lifting and Other Applications with Intermittent Operations
Features:
  • Integrated Drive and Guidance System
  • Complete Motor and Control Packages
  • Diverse Range of Accessories and Mountings
  • Special Options Available
Specifications:
  • Version: with trapezoidal screw drive
  • Size: 25, 32, 50 mm.
  • Pitch: 4, 4, 6 mm.
  • Max.Action force: 2500 N
  • Max.Speed: 0.15 m/s
  • Max.Stroke: up to 2500 mm.
  • Temp.range: -20 to +70’C

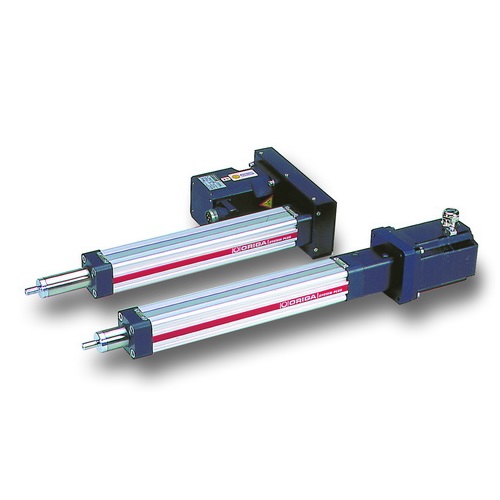

OSP-E..SBR, STR, Linear drives with ball screw drive or trapezoidal screw drive and piston rod


Linear drive with piston rod and belt gearbox
  • with ball screw drive OSP-E..SBR
  • with trapezoidal screw drive OSP-E..STR
Linear drive with piston rod
  • with ball screw drive OSP-E..SBR
  • with trapezoidal screw drive OSP-E..STR
Specifications:
Version: with ball screw drive
  • Size: 25, 32, 50 mm
  • Max.Action force: 1200 N
  • Max.Speed: 1.25 m/s
  • Max.Stroke: 500 mm.
  • Temp.range: -20 to +80’C
Version: with trapezoidal screw drive
  • Size: 25, 32, 50 mm
  • Max.Action force: 3300 N
  • Max.Speed: 1.25 m/s
  • Max.Stroke: 500 mm.
  • Temp.range: -20 to +70’C
