Manual Actuated Valves

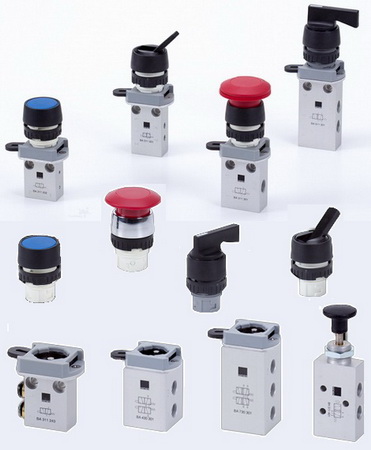

Panel Valves


Panel valves 3/2, 5/2, 4/3 and 7/3-way pneumatic valves for panel mounting,
Valves for manual actuation elements, Push-button valves

Type : BA, BAE, BH, BHP
Port size : G 1/8″, G1/4″, M5, pif 4 – 6 mm
Air flow : 125 – 1250 l/min
Operating pressure. : -0.9 ~ 16 bar
Function : 3/2-way spring return (NC or NC/NO), two positions, 3/2-way double,
                   5/2-way spring return, two positions, 5/2-way double,
                   4/3-way, 7/3-way, Rotary lever long, Mounting bracket

Actuation element : Push-buttons, Plam buttons with detend, Rotary lever (Shot or Long or 3-position long), Key-switch, Switch, Dust protection cap, Coupling

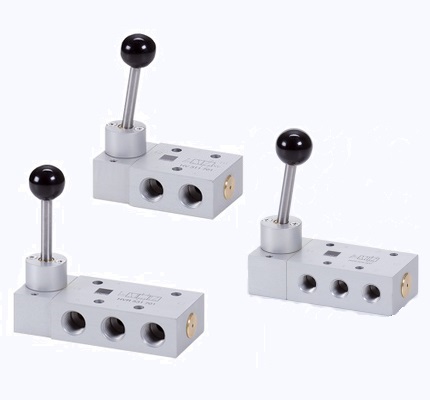

Lever Actuated Valves


Lever Actuated Valves 3/2, 5/2 and 5/3-way lever actuated pneumatic valves with spring-return or indexed

Type : HV, HVR
Port size : G1/8″ – G3/4″, NPT 1/4″ – 1/2″,
Air flow : 650 – 6000 l/min
Operating pressure. : 1 – 10 bar
Function : 3/2-way, 5/2-way Spring return (NC/NO), Two positions, Indexed,
                    5/3-way (centre closed, centre exhausted, centre pressurized)
