CAHB

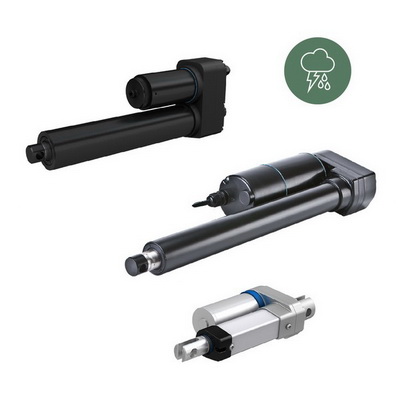

CAHB Linear Actuator (dc/ac motor)


Ewellix electromechanical CAHB actuators are engineered to operate in severe environments at temperatures from -40 to +85 °C with a maximum duty cycle of 25% and consist of robust metal gears with corrosion-resistant housings. Available in 7 models - CAHB-20A/20E/21E/22E with safety coupling for medium to high loads, CAHB-10 as a compact solution for low loads and CAHB-30A/31N for the AC version - they are virtually maintenance-free, self-locking up to twice the rated load and have an IP69K/66M protection rating. Other designs and versions are available, e.g. with limit switch, position feedback and manual adjustment function.

Model: CAHB-10, CAHB-20A, CAHB-20E, CAHB-21E, CAHB-22E, CAHB-30A, CAHB-31N
Max load: up to 10 kN
Max speed: up to 60 mm/s
Max stroke length: up to 700 mm
Voltage: 12, 24, 48 V DC, 115 or 230 V AC
Up to IP69K/66M, wide temperature range

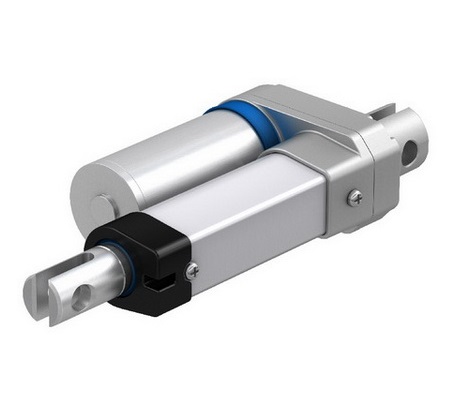

CAHB-10


The CAHB-10 is a compact solution for low load applications powered by DC voltage
and is virtually maintenance-free, self-locking, IP66S rated. Designed to operate at temperatures from -40 to 85 °C and up to 25% duty cycle, Ewellix's CAHB-10 electromechanical actuator family features robust metal gears and corrosion-resistant housings. Other design options are available.
  • Max load up to 1,5 kN
  • Max speed up to 56 mm/s
  • Voltage: 12 or 24 V DC
  • IP66, wide temperature range

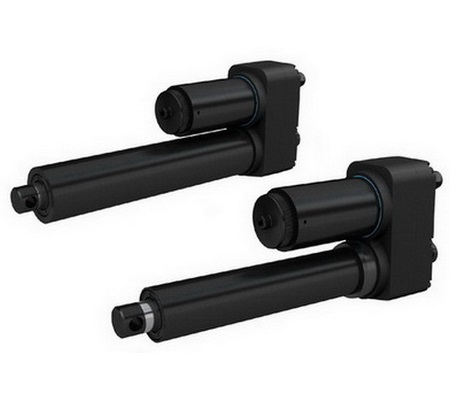

CAHB-20A, 20E, 21E, 22E


CAHB-2 is a solution for medium-heavy duty applications powered by DC voltage
and is virtually maintenance-free, self-locking, up to IP 69K/66M. Designed to operate in harsh environments with temperatures from -40 to 85°C with up to 20% duty cycle,
Ewellix's CAHB-2 family of electromechanical actuators features robust metal gears, mechanical overload protection, high speed, high holding force and heavy loads.
It is the latest design and offers greater stability and load, higher speeds, better IP,
minimum backlash, manual control option, optional limit switches, incremental
and absolute feedback options.
  • Max load: up to 10 kN
  • Max speed: up to 50 mm/s
  • Voltage: 48 V DC
  • IP69K/66M, wide temperature range

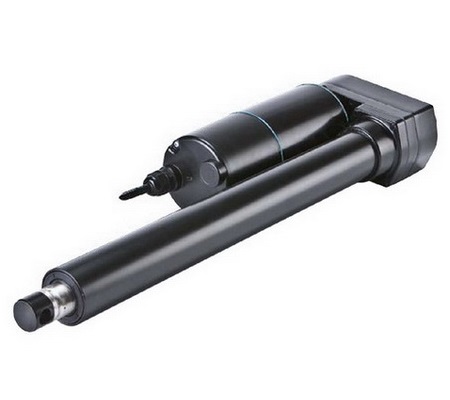

CAHB-30A, 31N


CAHB-3 is a solution for medium to heavy load applications that are powered by DC voltage and is virtually maintenance-free, self-locking, with an IP 65 rating. Designed to operate in harsh environments with temperatures from -26 to 55°C and up to 25% duty cycle, the CAHB-30 family of electromechanical actuators from Ewellix features robust metal gears and corrosion-resistant housings and ball screws. Other design options are available.
Discover the range of Ewellix CAHB actuators:
Discover the CAHB series of Ewellix actuators:
  • Max load: up to 6 kN
  • Max speed: up to 60 mm/s
  • Voltage: 115 or 230 V AC
  • IP65, wide temperature range
