Cryogenic -200 °C

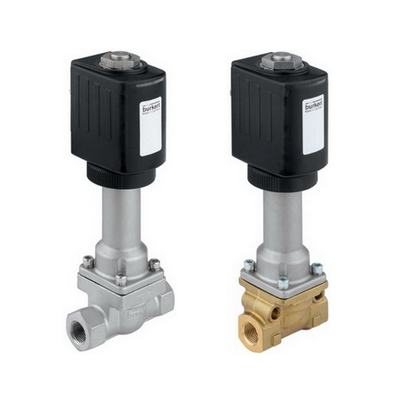

Type 6026 - Plunger valve 2/2 way direct-acting


The valve 6026 is a direct-acting, media-separated 2/2-way plunger valve. The thermal and hermetic isolation of the coil and body by means of stainless steel bellows allows both extreme medium temperatures as well as aggressive media. This design avoids the build-up of condensation between the fluid part and coil or an unacceptable heating up or freezing of the coil. The coils are moulded with chemically resistant epoxy. The valve is therefore particularly suitable for applications with critical media. The use of highly resistant body and seal materials such as stainless steel and PTFE make the valve suitable for critical chemical applications. The valve is supplied with a coil equipped with “Kick and Drop” (KD) electronics featuring double coil technology. In combination with a plug to DIN EN 175301 - 803 Form A, the valves satisfy degree of protection IP65.

  • Media-separated plunger valves up to DN12
  • Suitable for high and low temperature ranges (-200 °C...+180 °C)
  • Energy-saving double coil technology with “Kick and Drop” variant

Type 2610 - Plunger valve 2/2 way direct-acting


The direct-acting valve Type 2610 is delivered with circuit function normally closed. The thermal isolation of the coil and housing by means of stainless steel bellows allows the extreme medium temperature. In this way condensation or an unacceptable heating up of the coil is avoided. The supplied cable head contains a "kick and drop" electronic that supports the opening phase and afterwards reduction of the opening holding power.

  • Direct-acting, media separated valve with diameter of up to DN 12
  • Welded metal bellows system (316Ti)
  • High-quality PTFE seat seal
  • Media temperature from -200 °C to +180 °C
  • Energy-saving 'Kick and Drop' electronics

Type 6012 - Plunger valve 3/2 way direct-acting


Valve 6012 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Push-in fittings can be selected for flexible hose connection. A banjo connection with banjo bolt is the ideal solution for easy direct mounting on a pneumatic drive. Optional manual actuation enables quick commissioning and optimal maintenance. In combination with a plug in accordance with DIN EN 17301-803 Form B or C, the valves satisfy protection class IP65.

  • Direct-acting, compact small-format valve with diameter of up to DN 1.6
  • Screwed coil system
  • Banjo threaded connection for direct mounting on pneumatic valves
  • Simple and quick push-in, flange, or manifold installation
  • Service-friendly manual override

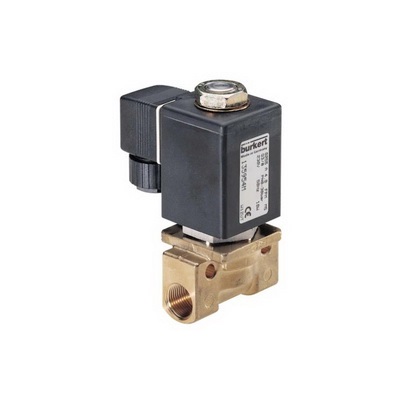

Type 0255 - Direct-acting 2/2 way plunger valve


The direct-acting plunger solenoid valve Type 0255 is also suitable for high pressures and high temperatures.

  • Push-over solenoid system
  • Compact design, up to DN 6
  • Housing made of brass or stainless steel with threaded connection
