Decompression unit

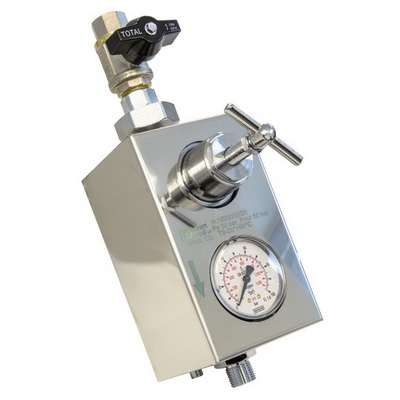

1P2S Decompression units for industrial and laboratories uses.
MIX Two or Three gas mixers.

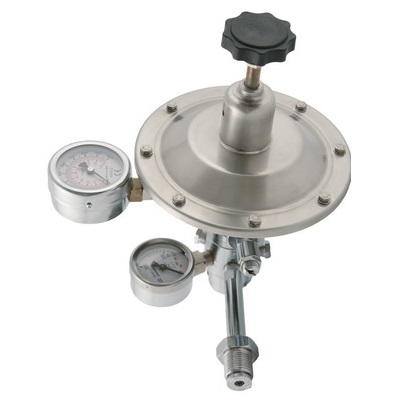

QEN 2034-160 Double-stage decompression unit for oenological application
Inlet connection suitable for cylinders or for ID Insert Deal manifolds.
Outlet connection: G 3/4 – F.
Inlet pressure up to 220 bar (3190 psi).
Outlet pressure adjustable starting from 5 mbar (0,072 psi)
Decompression units R2034/160 have their application in food, oenological and chemical industry.
The product complies with the directive 97/23/CE (PED).

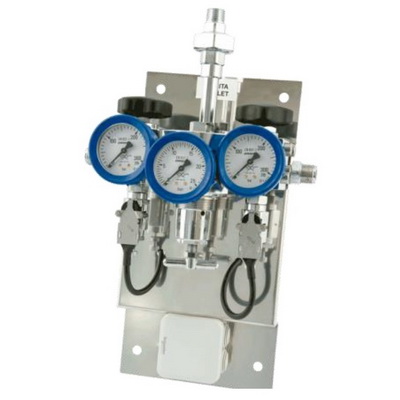

QM1200 Dual inlet modular decompression unit.

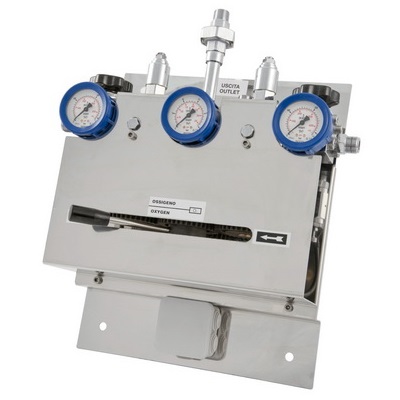

QSLM1200 Dual inlet decompression unit with automatic change-over system.

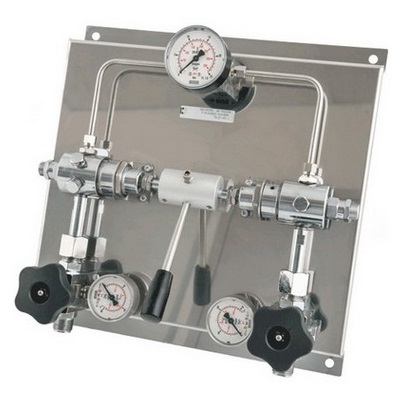

QSLM2000 Dual inlet decompression unit with automatic change-over system.

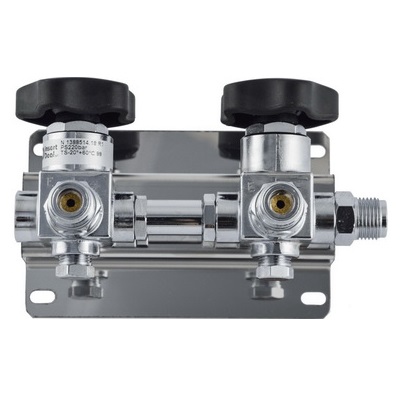

R1 High pressure manifolds made of chrome plated brass.
Chrome plated brass manifolds for pressure up to 220 bar (3190 psi) in the standard version. Modular ranges from one to six inlets.
Inlet and outlet connections W20x 1/14”SX–M or W21,7×1/14”–M according to the fluid.
The manifold are suitable to connect one or more cylinders to the same user up to a maximum of 6 cylinders.
On-off valve with non-return device at every inlet.
Wall mounting bracket.
Accessories available on request: bleeder micro-regulator or pressure switch.
Available version “filling manifold”; single inlet, from 1 to 6 outlets.
The product complies with the 97/23/CE (PED).

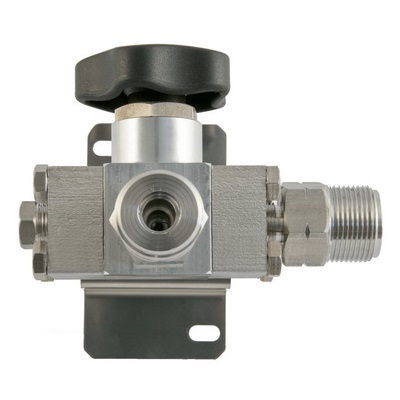

R2 Aluminium manifolds with stainless steel AISI 316L internals for ammonia.
Aluminium manifolds with stainless steel AISI 316L internals for pressure up to 15 bar (217,5 psi). Modular design ranges from one to five inlets.
Inlet and outlet connections W30x1/14” SX – M.
The manifolds may to connect one or more cylinders to the same user, up to a maximum of 5 cylinders, employing the 5 inlets model.
Non return on-off valve for each inlet.
Wall mounting bracket.
The product complies with the 97/23/CE (PED).

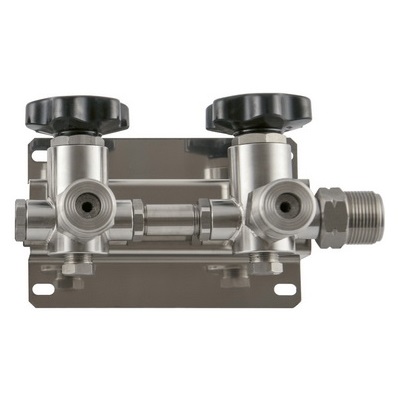

R3 AISI 316L stainless steel high pressure manifold.
Stainless steel manifolds for pressure up to 220 bar (3190 psi) in the standard version. Modular design ranges from one to six inlets.
Inlet and outlet connections:
W 20 x 1/14” SX – M,
W 21,7 x 1/14” – M,
W 30 x 1/14” SX – M according to the fluid.
The manifold may connect one or more cylinders to the same user up to a maximum of 6 cylinders employing the 6 inlets model.
Non return on-off valve for each inlet.
Wall mounting bracket.
Available the “filling manifold” version;
single inlet, from 1 to 6 outlets.
The product complies with the 97/23/CE (PED).

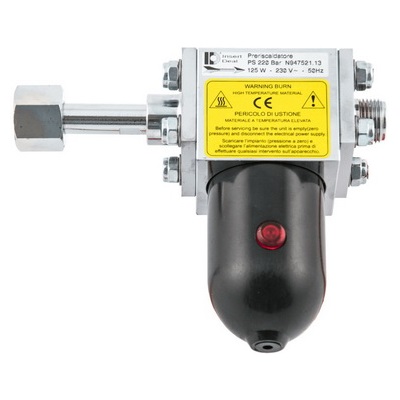

VP Pre-heater for cylinders and manifolds.
Pre-heater for gas cylinders and ID Insert Deal manifolds.
Made in chrome-plated brass. Lower bowl made of plastic.
Inlet pressure up to 220 bar (3190 psi).
Suitable for inert gases. Not suitable for gases that are: reactive, corrosive, combustible.
Its high power of heat exchange guarantees the removal of the frost effect on the pressure regulator.
The product complies with the directives: 2006/95/EC (low voltage directive) and 2004/108/EC (EMC directive).

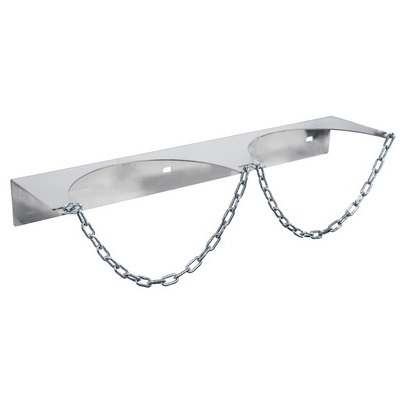

VR Cylinder rack.
Cylinder racks for the correct placing and operation of compressed gases cylinders. Available racks for 1,2 or 3 cylinders.
Made of stainless steel AISI 304, separate compartments and safety chains to avoid cylinders fall.
To be wall-mounted by the apposite holes.

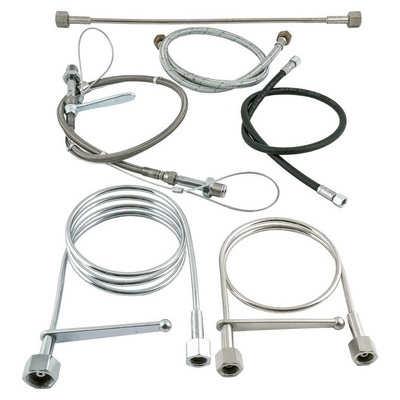

VS Flexible connections.
Flexible low pressure and high pressure (220 bar/ 3190 psi) connections.
Suitable for connecting cylinders or cylinder packs to ID Insert Deal manifolds or decompression units.
Also suitable for generic connections of different devices together.
Materials and design according to pressure and use.
Cylinders connections complies with UNI standards, available DIN, NF and CGA connections on request.
Available lengths 1 m and 2 m (39 in, 79 in).
